MI 3394 XS Standard set

The A 1600 CE Switch 5kV combines all features of the CE MultiTesterXS and extends them to four HV test channels and two 4-wire continuity test channels. The CE Switch could be used in conjunction with several separate connection boxes, containing various kinds of contacting to tested items. The operation of CE Switch is completely controlled by the master instrument, no user intervention during the tests is needed. I/O connections and LEDs for controlling the Autosequence® flow are integrated. Testing of electrical equipment with multiple connection points is supported. The switch recognizes the connected adapter and prevents from applying too high voltages/current to it (protection by HW and SW).



A 1600 Standard set

• A 1600 CE Switch 5kV
• A 1728 Mains cable C13 / Schuko, 3 x 0.75 mm², 2 m
• A 1695 Grounding cable, 2 m
• A 1076 Continuity test lead, 2.5 m, 2pcs
• A 1645 Multi-functional test cable, TC1, 1.3 m
• A 1601 HV test lead with test probe, red, 1.5 m
• A 1602 HV test lead with test probe, blue, 1.5 m

The A 1674 compact desktop enclosure is designed for integration of the CE Multitester instrument, or/and A 1600 SWITCH 5kV. Its design enables fast and simple integration of measuring components.



A 1674 Standard set

• A 1674 19” Rack housing
• A 1695 Grounding cable, 2 m

This Safety module is designed for test places where protective cover or safety door is used. The module is intended for protection with an RFID sensor and emergency switch. The RFID switch indicates the state (opened/ closed) of the door of the cage or cabinet. If the door is opened the safety module will disconnect the measuring circuits from the mains, which results in the maximal protection for the operator. The safety module is equipped also with the emergency switch and the START button.



S 2109 Standard set

• S 2109 Safety system with RFID sensor
• A 1728 Mains cable C13 / Schuko, 3 x 0.75 mm2, 2 mA
• 1690 Start button
• A 1689 Emergency stop button
• A 1017 Communication cable, RS232, 2 m

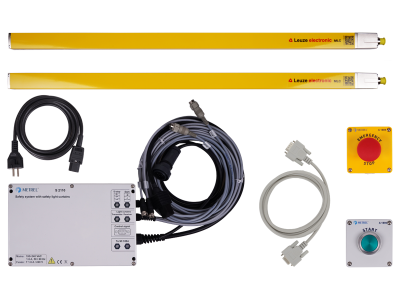

This safety module is a production friendly safety component that does not physically impact on the actions of the operator. The goal of light curtains is to provide safety by ceasing test system operations if an object crosses a specified safety zone. The light curtains monitor if any object has breached inside the prohibition zone, if the light curtains detect a breach the safety module will disconnect the measuring circuits from the mains.



S 2110 Standard set

• S 2110 Safety system with safety light curtains
• A 1728 Mains cable C13 / Schuko, 3 x 0.75 mm2, 2 m
• A 1690 Start button
• A 1689 Emergency stop button
• A 1017 Communication cable, RS232, 2 m

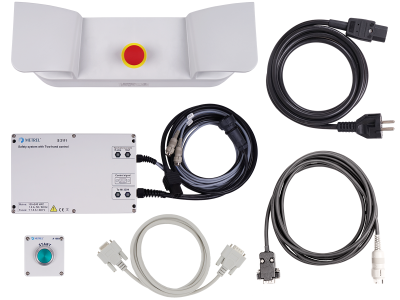

Two-hand control panel is non-separating protection device. In general, it serve to ensure the location of both hands of a test system operator who gives a control signal for applying a dangerous test voltage. Two-hand control panel thus ascertain that intervention by the operator in dangerous situations is avoided. A two-hand start control should be used for test stations where dangerous voltages are applied to tested objects without test covers or test probes. This safety module is intended for protection with two hand control device and an emergency switch. Both buttons on the two hand control device must be pressed during the test. If any of the buttons is switched off the safety module will disconnect the measuring circuits from the mains. If the emergency switch is activated the test system will be disconnected from the mains. The START button is intended to activate the safety module after being (re-)energized.



S 2111 Standard set

• S 2111/1 Safety system with two-hand control
• S 2111/2 Two-hand operation console
• A 1728 Mains cable C13 / Schuko, 3 x 0.75 mm2, 2 m
• A 1690 Start button
• A 1696 Connection cable
• A 1017 Communication cable, RS232, 2 m

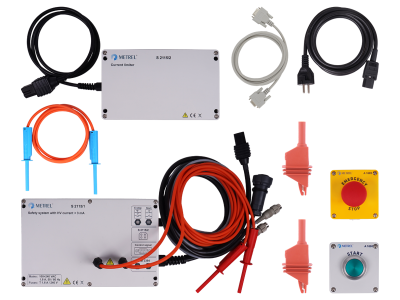

In many countries additional workplace safety measures are not needed during the high voltage testing with a.c. up to 3mA. If the current is higher than 3 mA a special test system with automatic protection against direct contact or a sealed off area with warning light and two-handed operation is required. This Safety module is intended for limitation of the test current in the HV tests to a safe level. It consists of two boxes. The first box S 2115_1 contains resistors that are connected in series with the HV measuring circuit. The resistors significantly reduce the output power of the high voltage circuit (short circuit power < 20 mA). The second box S 2115_2 contains a current monitor. If the test current exceeds 3 mA the inbuilt current monitor will disconnect the measuring circuits from the mains within a safe time. The START button is intended to activate the safety module after being (re-)energized.



S 2115 Standard set

• S 2115/1 Safety system with current limitaion, HV current  < 3 mA
• S 2115/2 Current limiter
• A 1728 Mains cable C13 / Schuko, 3 x 0.75 mm2, 2 m
• A 1773 Crocodile clip, red, (HV)
• A 1602 HV test lead with test probe, blue, 1.5 m
• A 1690 Start button
• A 1689 Emergency stop button
• A 1017 Communication cable, RS232, 2 m

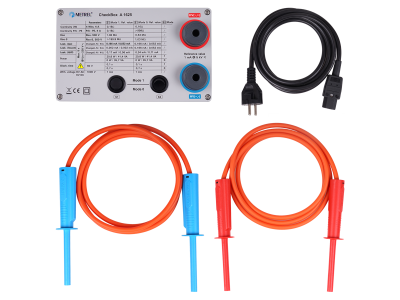

It is wise to regularly, on daily basis inspect the test system. CheckBox has a built in electronic components with reference values, which proof that the measuring system is operating correctly. A 1625 CE checkbox is intended for checking of correct measurements for instruments like MI 3394, MI 3325, or with combination of mentioned one with A 1460, or with combination of mentioned one with A 1600 plus one of connection box.



A 1625 Standard set

• A 1625 CheckBox
• A 1601 HV test lead with test probe, red, 1.5 m
• A 1602 HV test lead with test probe, blue, 1.5 m
• A 1493 Mains cable EU13 / Schuko, 3 x 1.5 mm2, 2 m

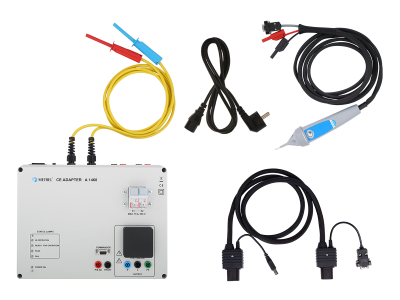

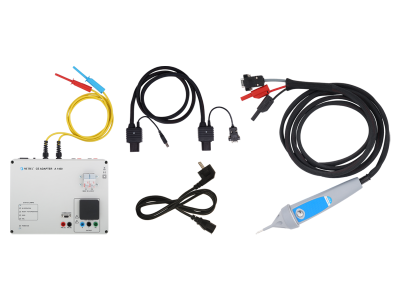

The A 1460 CE Adapter is an active switch or adapter intended to run AutoSequences® on electrical equipment in combination with the master instruments. The operation of CE test adapter is completely controlled by the master instrument, no user intervention during the tests is needed. I/O connections and LEDs for controlling the AutoSequence® flow are integrated. The adapter is protected against applying too high voltage to its outputs (HW and SW protection).



A 1460 Standard set

• A 1460 CE Adapter
• A 1728 Mains cable C13 / Schuko, 3 x 0.75 mm2, 2 m
• A 1511 2M5 Tip commander, 2.5 m
• A 1645 Multi-functional test cable, TC1, 1.3 m
