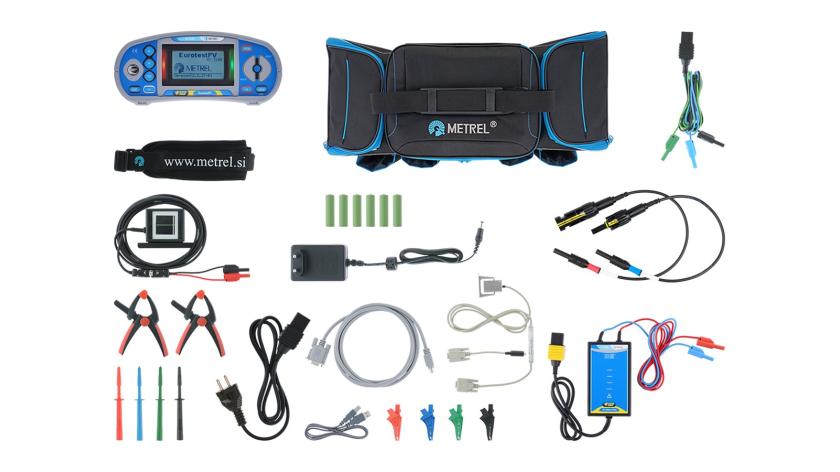

MI 3108 Standard set
Sets
- Instrument MI 3108 EurotestPV
- A 1552 Large carrying bag
- A 1053 Schuko-plug test cable
- A 1193 Test lead, 3 x 1.5 m
- A 1016, A 1062, A 1015, A 1014 Test probe, 4 pcs (red, green, blue, black)
- A 1064, A 1309, A 1310, A 1013 Crocodile clip, 4 pcs (red, green, blue, black)
- A 1384 PV Safety Probe
- S 2145 PV MC3/4 male/female adapters
- A 1427 PV Reference Cell
- A 1400 Temperature probe
- A 1707 Set of carrying straps
- USB and RS232 - PS/2 cable
- Power supply adapter + 6 NiMH batteries, type AA
- Calibration certificate
- Short instruction manual
- Instruction manual*
- PC Software SW 0101 EuroLink PRO*
Do you own this product?
Optional accessories
A 1110 Three phase adapter
3-phase test adapter for installation safety testing on 3-phase sockets type 16 A 3CEE.
A 1111 Three phase adapter with switch
3-phase adapter with selection switch for installation safety testing on 3-phase sockets type 16 A 3CEE. The adapter allows seamless switching between measurements.
A 1385 PV fused test lead
Test cable for simultaneous AC/DC power and efficiency measurements of PV inverters.
S 2026 Earth test set, 3-wire, 20 m
Earth test set for earth resistance measurement on distance up to 20 m; set includes: test lead, 20 m, 2 pcs; test lead, 4.5 m; earth spikes, 2 pcs; soft carrying bag.
S 2027 Earth test set, 3-wire, 50 m
Earth test set for earth resistance measurement on distance up to 50 m; set includes: test lead, 50 m, 2 pcs; test lead, 4.5 m; test lead, 1 m, 2 pcs; earth spikes, 2 pcs; soft carrying bag.
A 1292 Eurolink PRO to EuroLink PRO Plus (Licence)
Password for upgrading standard PC software EuroLink PRO to advanced PC SW EuroLink PRO Plus with professional report creation facility.
A 1314 Plug commander
Single phase, 3-pin plug commander with TEST, MEM and function selection buttons and RGB LED status indicator.
A 1401 Tip commander
Single phase, 3-wire tip commander with TEST, MEM and function selection buttons, RGB LED status indicator and front LED lamp.
A 1436 Bluetooth dongle
External Bluetooth adapter for wireless connection between Metrel’s instruments and Smart phones, tablets and PCs.
S 2125 1,2 V, 2400 mAh AA rechargeable NiMH batteries type AA, 6 pcs
A set of 6 pieces of rechargeable NiMH batteries type AA.
S 2143 Set of test probes CAT II FI 2 black, blue, green METREL
Test probes with 2 mm diameter test tip to fit testing holes incorporated in the various connectors and to reach measurement locations unreachable by test probes with 4 mm diameter test tip.
A 1835 Clamp for attaching accessories
Universal clamp for attaching different measurement accessories.
A 1942 Current Clamp-iron 4/200 A Dia=25 mm - AC/DC
AC/DC Current Clamp probe, 4/40/200A range, jaw opening 26 mm, 4 mm banana plug.
A 1836 Adapter for PV temperature sensor
Adapter for direct connection of the temperature sensor to instruments MI 3108 and MI 3109.
A 1837 Adapter for PV reference cell
Adapter for direct connection of the irradiation sensor to instruments MI 3108 and MI 3109.

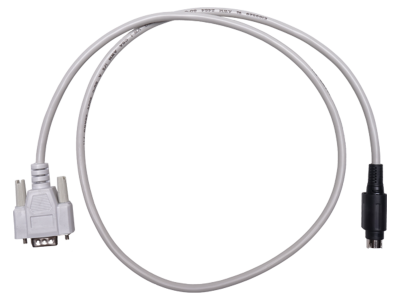

A 1849 Communication cable, 1m, DB9/PS2
Optional accessory for MI 3088 PV demo board. For demos with PV Remote unit.

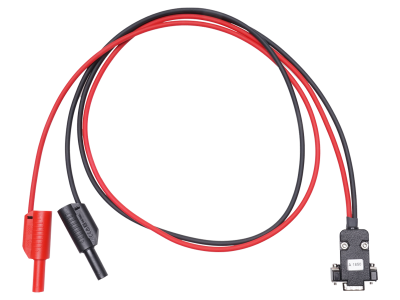

A 1850 Test cable, 1m, DB9/2x stack ban plug
Optional accessory for MI 3088 PV demo board. For demos with PV Remote unit.
A 1840 Test lead, Blue, 0.3m, MC4 Female/Banana socket- 1500V
Adapter MC4 Female to banana socket, 1500V DC, blue, for PV measurements on strings terminated with MC4 compatible connectors.

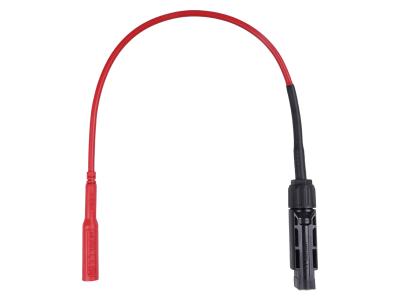

A 1841 Test lead, Red, 0.3m, MC4 Male/Banana socket - 1500V
Adapter MC4 Male to banana socket, 1500V DC, red, for PV measurements on strings terminated with MC4 compatible connectors.
