MI 2893 Power Master XT
MI 2893 Power Master XT

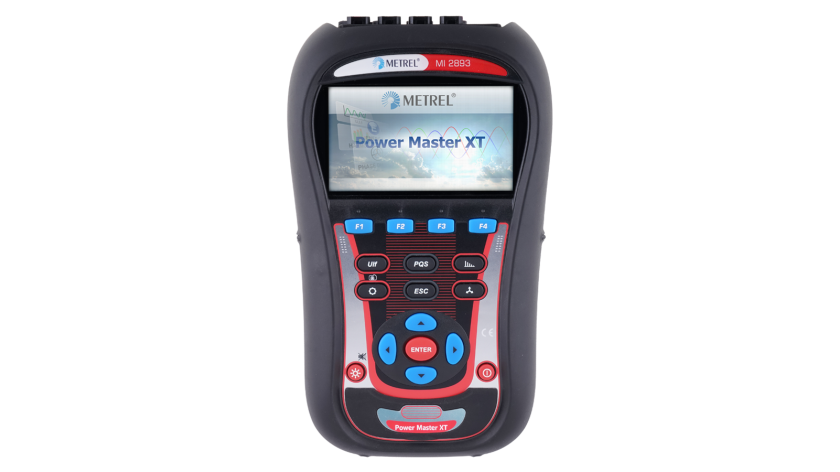

The MI 2893 Power Master XT is a hand-held three phase power quality analyzer with a large easy-to-read graphical color display enabling the user to detect harmonics, phasors, waveforms and transients with sampling frequency 1 MSamples/sec in the installation simply by connecting the device. The instrument is designed for a long term recording as well as for troubleshooting power quality problems in three-phase and single-phase power distribution systems. The handy Quick Set buttons makes the instrument more user friendly and are allowing faster data overview for troubleshooting. Advanced PC SW package PowerView3 enables detailed analysis of recorded data, direct and remote reading from the micro SD memory card, analysis of long term records and automatic creation of professional test report.
Select a set

Do you own this product?

Repair & Calibration
Technical support
Frequently asked questions
Documentation center
Metrel Academy

Select a set

Featured

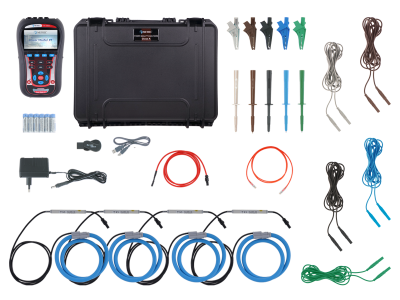

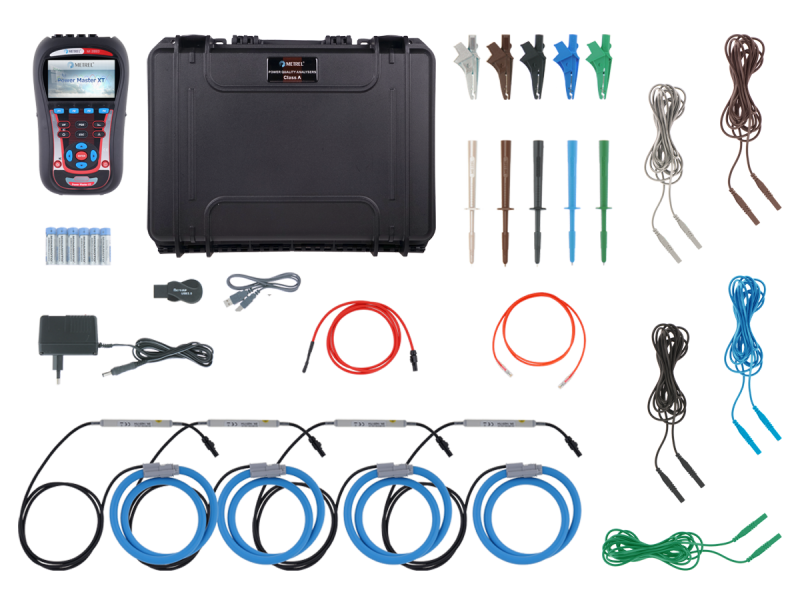

MI 2893 Advanced set

  • Instrument Power Master XT
  • 1-phase flexible current clamps 3000 / 300 / 30 A (A 1502), 4 pcs
  • Test probe, (brown, black, grey, green, blue), 5 pcs
  • Crocodile clip, (brown, black, grey, green, blue), 5 pcs
  • Voltage measurement lead, (brown, black, grey,green, blue), 5 pcs
  • Labels for colour coding
  • Temperature probe
  • microSD memory card 8.0GB
  • microSD card reader
  • PC SW PowerView3
  • USB and Ethernet patch cable
  • Power supply adapter
  • 1.2 V NiMH rechargeable battery, 6 pcs
  • Professional protective waterproof case (A 1685)
  • Instruction manual
  • Calibration certificate
Add to enquiry
Optional accessories

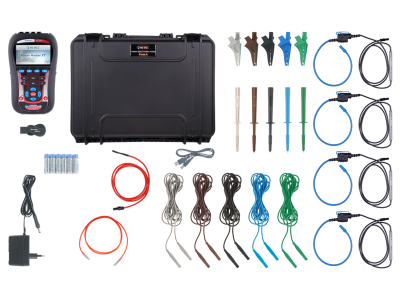

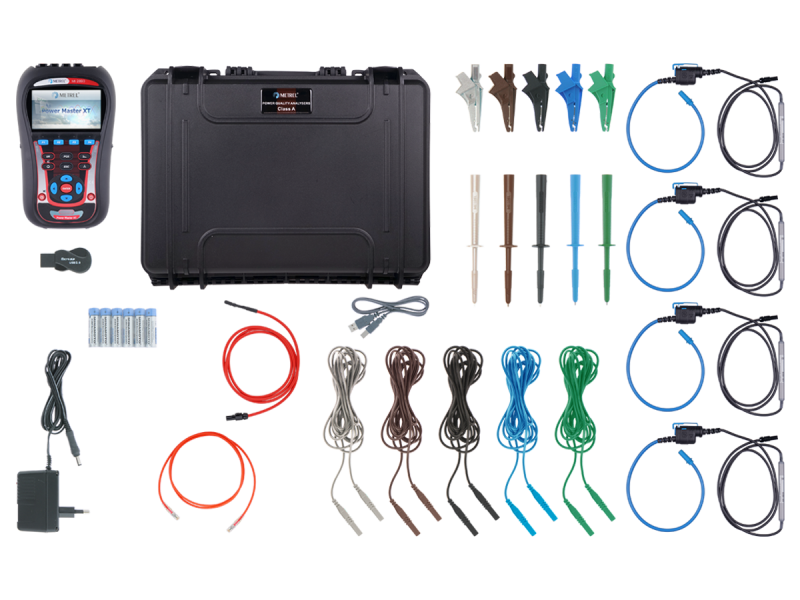

MI 2893 Euro set

  • Instrument Power Master XT
  • 1-phase flexible current clamps 3000 / 300 / 30 A (A 1227), 4 pcs
  • Test probe, (brown, black, grey, green, blue), 5 pcs
  • Crocodile clip, (brown, black, grey, green, blue), 5 pcs
  • Voltage measurement lead, (brown, black, grey, green, blue), 5 pcs
  • Labels for colour coding
  • Temperature probe
  • microSD memory card 8.0GB
  • microSD card reader
  • PC SW PowerView3
  • USB and Ethernet patch cable
  • Power supply adapter
  • 1.2 V NiMH rechargeable battery, 6 pcs
  • Professional protective waterproof case
  • Instruction manual
  • Calibration certificate
Add to enquiry
Optional accessories

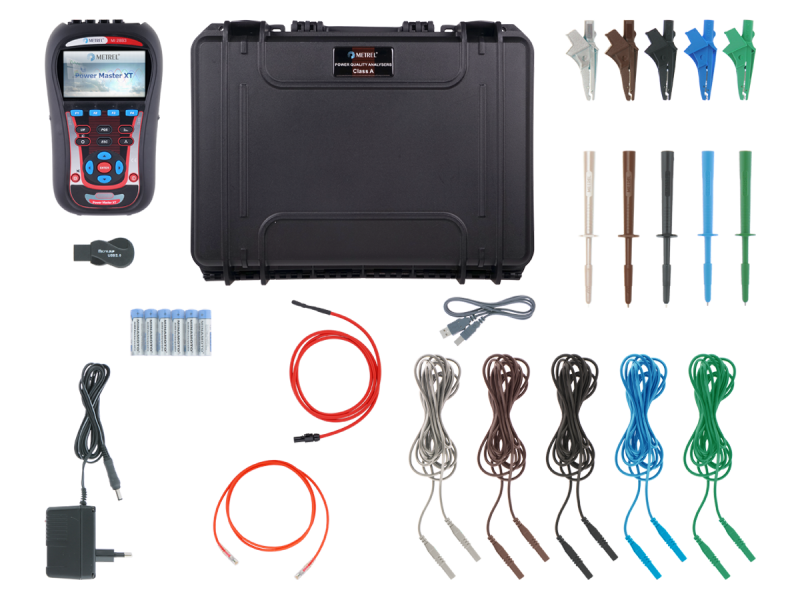

MI 2893 Standard set

  • Instrument Power Master XT
  • Test probe, (brown, black, grey, green, blue), 5 pcs
  • Crocodile clip, (brown, black, grey, green, blue), 5 pcs
  • Voltage measurement lead, (brown, black, grey,green, blue), 5 pcs
  • Labels for colour coding
  • Temperature probe
  • microSD memory card 8.0GB
  • microSD card reader
  • PC SW PowerView3
  • USB and Ethernet patch cable
  • Power supply adapter
  • 1.2 V NiMH rechargeable battery, 6 pcs
  • Professional protective waterproof case (A 1685)
  • Instruction manual
  • Calibration certificate
Add to enquiry
Optional accessories

Standards applied

Power quality

  • PQA Competences: Power Quality Analyzing & Reporting
  • IEC/EN 61000-4-15 Electromagnetic compatibility (EMC) – Part 4: Testing and measurement techniques – Section 15: Flickermeter – Functional and design specifications
  • IEC/EN 61000-4-30 Ed. 3.0 Electromagnetic compatibility (EMC) – Part 4-30: Testing and measurement techniques – Power quality measurement methods
  • IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)
  • IEEE 1459-2010 IEEE Standard Definitions for the Measurement of Electric Power Quantities Under Sinusoidal, Nonsinusoidal, Balanced, or Unbalanced Conditions
  • GOST 33073-2014 Electric energy. Electromagnetic compatibility of technical equipment. Control and monitoring of electric power quality in the public power supply systems
  • GOST R 54149: 2010 Electric energy. lectromagnetic compatibility of technical equipment. Power quality limits in the public power supply systems
  • IEEE 519 Recommended Practice and Requirements for Harmonic Control in Electric Power Systems
  • EN 50160 Voltage characteristics of electricity supplied by public distribution networks

Instrument safety towards user

  • EN 55032 Electromagnetic compatibility of multimedia equipment - Emission requirements
  • IEC/EN 61000-4-6 Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement techniques - Immunity to conducted disturbances, induced by radio-frequency fields

Properties

Measuring functions

  • Voltage: TRMS, peak, crest factor (4-channel);
  • Current: TRMS, peak, crest factor (4-channel);
  • Power (active, reactive, apparent);
  • Power measurements fully compliant with IEEE 1459 (active, non active, fundamental, harmonic, load un-balance) and classic (vector or arithmetic) method;
  • VFD (variable frequency drive, 5 Hz – 120 Hz), 400 Hz;
  • Unbalance, flicker measurement;
  • Harmonic and interharmonic analysis up to 50th harmonics, THD and TDD measurements;
  • Energy (active, apparent, reactive, apparent, generated, consumed);
  • Capturing and recording of power supply events (shutdowns, interruptions, swells, dips);
  • Inrush currents monitoring and recording;
  • Waveform/inrush displaying, snapshot and recording;
  • Transients with sampling frequency
  • 1 MSamples/sec;
  • Power quality analysis according to EN 50160, IEEE 519;
  • Recording up to 7 adjustable alarms;
  • Temperature measurement;
  • Power factor, cos fi and tg fi.

Key features

  • 4-voltage channels with wide measurement range;
  • 4-current channels with support for automatic clamp recognition and “on instrument“ range selection;
  • Automatic Smart Clamp detection and Smart Clamp range selection;
  • Current clamp auto range selection;
  • Sampling frequency on transients recording > 1 MSamples/sec, on 8 channels simultaneously;
  • Compliance with power quality standard IEC 61000-4-30 Class A;
  • Complete power quality analysis according to EN 50160 including signalling and interharmonics;
  • Support for microSD memory card (8-GB supplied with the instrument) up to 32GB;
  • Color-coded input terminals and termi­nal labels to suit your application region;
  • Intuitive main menu and large icons that makes the equipment very easy to navigate and configure;
  • Powerful PC SW PowerView3 enables downloading, view, analysis of recorded data and professional report creation;
  • Flexible clamps (without additional power supply) are included in the AD/EU set;
  • Remote communication via Ethernet:
  • GPS clock synchronization (optional).

Technical data

  • Dimensions: 230 x 140 x 80 mm
  • Mass: 1.1 kg
