MI 3360 F OmegaGT XA

PAT testers

MI 3360 F OmegaGT XA
MI 3360 F OmegaGT XA
New series of OmegaPAT XA brings 4 models of the instrument, intended for professional use in the most demanding applications. All of them support user accounts, which means that one device can be used by several electricians. Model versions cover the following fields of testing: portable appliances, welding equipment, medical devices and professional testing of PRCD devices. All instruments have an advanced built-in user interface that enables the execution of pre-defined and user-created AUTOSEQUENCE®s. Large memory capacity (8 GB microSD card) enables the user long term saving and archiving of data. All the instruments are specially designed for long-term testing, since their memory structure enables simple searching through the archive of devices and quick re-execution of (periodic) tests. Great emphasis was put on support for peripheral devices such as printers and barcode or QR code scanners and RFID readers (in Bluetooth and wired versions). On top of that, all instrument versions are supported by our Metrel ES Manager PC software.
Select a set

Do you own this product?

Repair & Calibration
Technical support
Frequently asked questions
Documentation center
Metrel Academy

Select a set

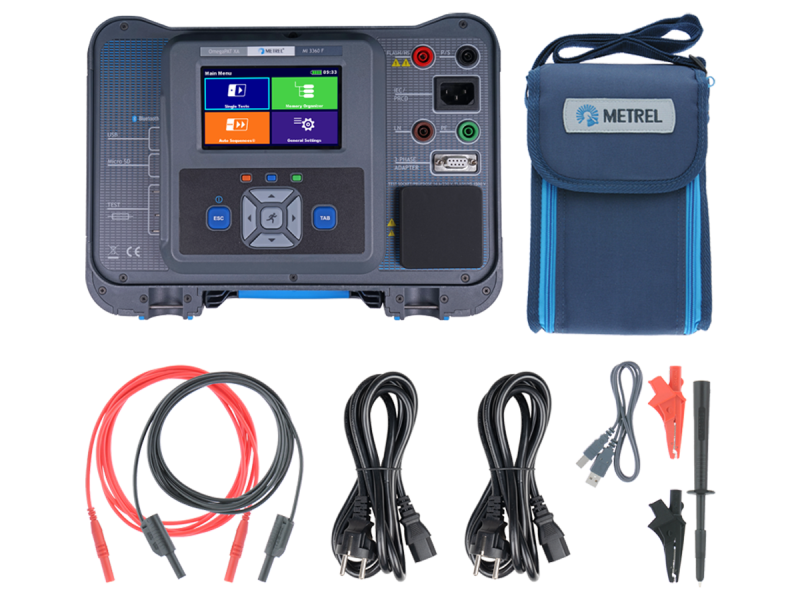

MI 3360 F Standard set

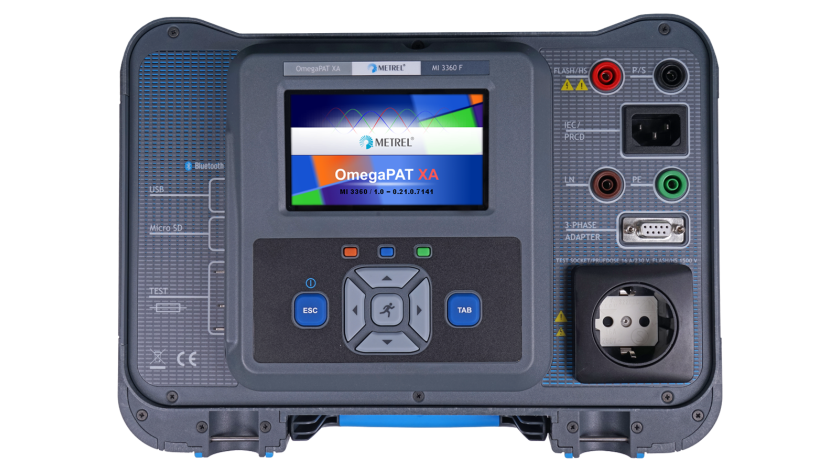

  • Instrument MI 3360 OmegaGT XA
  • Bag for accessories
  • Flash test probe
  • Crocodile clip, red
  • Crocodile clip, black
  • IEC test cable, 2 m
  • Test lead, black
  • Test tip, black
  • Mains cable
  • USB cable
  • Calibration certificate
  • Short instruction manual
  • Instruction manual*
  • Metrel ES Manager BASIC Licence*
  • SW 1201 Metrel ES Manager (program installation)*
*Metrel ES Manager and all documentation can be downloaded free of charge from Metrel Web server or Metrel Documentation center.
Add to enquiry
Optional accessories

Videos

Instructional

How To

How To

How To

How To

How To (Software)

How To (Software)

How To (Software)

How To (Software)

MI 3360 F OmegaGT XA
MI 3360 F OmegaGT XA
MI 3360 F OmegaGT XA
MI 3360 F OmegaGT XA

Standards applied

Building LV Installation

  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - relevant parts
  • AS / NZ 3017 Electrical installations – Verification guidelines

Portable appliances safety

  • PAT Competences: Portable Appliances Safety Testing
  • AWE Competences: Arc Welding Equipment Safety Testing
  • EN 50699 Recurrent Test of Electrical Equipment
  • EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
  • AS / NZ 3760 In-service safety inspection and testing of electrical equipment
  • VDE 0701 Inspection after repair, modification of electrical appliances - periodic
  • VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
  • NEN 3140 Guidelines for safe working practices
  • IEC/EN 60974 Arc welding equipment series
  • IEC/EN 60974-4 Arc welding equipment - Part 4: Periodic inspection and testing
  • IEC 62368-1:2023 Audio/video, information and communication technology equipment - Part 1: Safety requirements
  • IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment

Instrument safety towards user

  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series

Properties

Measuring functions

  • Visual inspections;
  • Fuse test;
  • Continuity // Protective earth resistance 200 mA;
  • Continuity // Protective earth resistance 10 A, 25 A (25A, M, F, models only);
  • Insulation Resistance (Riso, Riso-S);
  • Sub-Leakage Current, Substitute Leakage Current - S;
  • Differential Leakage current;
  • PE leakage current;
  • Touch leakage current;
  • Leakage current produced by a floating input (Itou + IFI);
  • Leakage current produced by a floating input (IPE + IFI);
  • Insulation resistance, IEC/EN 62353 (M, model only);
  • Touch leakage current, IEC/EN 62353; IEC 60601 (M, model only);
  • Equipment leakage (direct, differential, alternative) IEC/EN 62353 (M, model only);
  • Applied part leakage (direct, alternative), IEC/EN 62353 (M, model only);
  • Patient leakage (IpME), IEC/EN 62353, IEC 60601 (M, model only);
  • Insulation resistance, (optional A 1422) IEC/EN 60974-4;
  • Welding circuit leakage, (optional A 1422) IEC/EN 60974-4;
  • Primary leakage, (optional A 1422) IEC/EN 60974-4;
  • No-load voltage, (optional A 1422) IEC/EN 60974-4;
  • Power (P, S, Q, PF, THDu, THDi, CosØ, I, U,);
  • PRCD test, (2-pole, 3-pole, K/Di (varistor), S (3-pole));
  • PRCD PE probe test, PRCD open conductor test, PE conductor (PRCD) test;
  • RCD test, (type A, AC, B, B+, F);
  • Flash test, (1500 V, 3000 V), (F, model only);
  • Polarity / Active polarity test;
  • Clamp current (with optional A 1579).

Key features

  • Touch screen: high resolution colour touch screen, 4.3” TFT.
  • Double manipulation: keyboard and touch screen enable the user to control the instrument in any manner they like.
  • Pre-defined AUTOSEQUENCE®s: enable the user simple and quick execution of test sequence for the chosen device.
  • Read the code and test: QR and barcode system of labelling in combination with AUTOSEQUENCE®s enables the user quick and simple testing of electrical devices.
  • Testing groups: the instruments have built-in filters in accordance with their area of application, which enables the user simple choice of needed test sequences.
  • Support for PRCD testing: support for all types of PRCDs, including 2-pole, 3-pole, K/Di (varistor), S (3 pole) and testing with the PE probe.
  • Support for RCD testing: all instruments support testing of A, AC, B, B+ and F RCDs.
  • Fuse testing: the instrument has a special, integrated testing module for quick testing of all types of fuses.
  • Hard-wired devices: the instruments have integrated additional test terminals that enable the user simple testing of hard-wired devices.
  • High-voltage testing (only MI 3360 F): the instrument enables insulation resistance measurement that has to be performed after repairs or maintenance of electrical devices.
  • Testing of medical devices (only MI 3360 M): the instrument enables testing of medical devices in accordance with IEC/EN 62353 extended to tests in acc. with IEC 60601.
  • Testing of Audio/video, information and communication technology equipment (only in combination with A 1789 SFC adapter): all models of OmegaGT XA support testing of Audio/video, information and communication technology equipment IEC/EN 62368.
  • Testing of welding equipment (only in combination with A 1422): all models of OmegaGT XA support testing of welding equipment in accordance with IEC/EN 60974-4.
  • Large memory: support for microSD memory cards, 8 GB card already integrated in the instrument, although that can be expanded to 32 GB.
  • PC SW Metrel ES Manager: enables creation of test structures, user-defined AUTOSEQUENCE®s, professional test reports and data transfer for archiving.
  • aMESM Android SW: enables QR code scanning, and uploading of pre-prepared user-defined AUTOSEQUENCE®s.

Technical data

  • Dimensions (w x h x l): 310 x 130 x 250 mm
  • Weight (with batteries, without accessories): 6.1 kg

Applications

Portable and fixed appliances

Surgery rooms or operating theatres

Preventative maintenance

  • Safety of portable appliances

Troubleshooting

  • Appliances troubleshooting

Specifications


Print

Downloads

Datasheet Language Version Release Notes Type Size Download
MI 3360 OmegaGT XA en 2019 30.08.2021 Main features pdf 6.44 MB
MI 3360 OmegaGT XA en 2019 30.08.2021 Technical info pdf 8.48 MB
SW 1203 Metrel SDK en 2022 10.11.2022 pdf 816.54 KB
MI 3360 OmegaGT XA en 2022 09.06.2022 Single leaflet pdf 3.54 MB
New standards EN 50678 and EN 50699 en 2023 21.04.2023 pdf 3.21 MB
Manual Language Version Release Notes Type Size Download
MI 3360 OmegaPAT XA en 1.13.18 12.09.2024 20 752 658 pdf 5.83 MB Login
MI 3360 OmegaPAT XA Multi-Language 2023 20.01.2023 zip 8.54 MB Login
DoC Language Version Release Notes Type Size Download
EU Declaration of Conformity Multi-Language 06.07.2023 QR code External link Unknown
Guide Language Version Release Notes Type Size Download
MI 3360 OmegaGT XA en 1.1.1 05.11.2020 20 753 132 pdf 4.72 MB
PC Software Language Version Release Notes Type Size Download
SW 1201 Metrel Electrical Safety Manager (MESM) Multi-Language 1.25.1.56 24.10.2024 Readme zip 440.8 MB Login
Android Language Version Release Notes Type Size Download
SW 1204 RISK Calculator Android en 04.01.2021 QR code External link Unknown
Firmware Language Version Release Notes Type Size Download
Firmware MI 3360 Multi-Language 1.11.28.3ad81698 02.02.2024 Readme zip 20.17 MB
Auto Sequences Language Version Release Notes Type Size Download
Metrel AUTO SEQUENCEs en 2023 03.03.2023 Mi 3360 PAT-GT zip 581.38 KB Login

Where to buy?

Search for distributors and partners

Have a question?

Speak with a specialist
