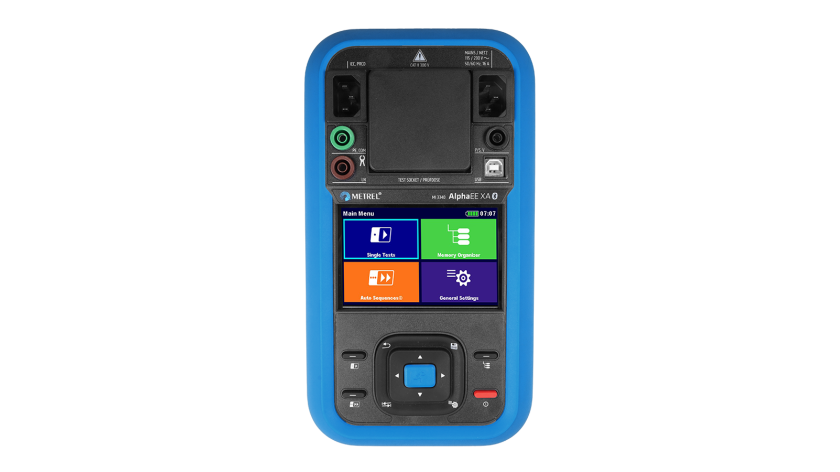

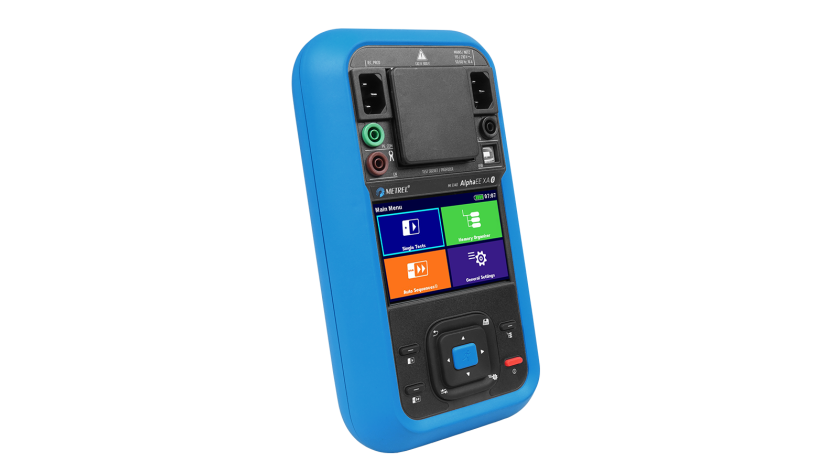

MI 3340 AlphaEE XA New

Measuring functions

• EN 50678 / EN 50699
• Visual inspections;
• Auto test (Continuity + Insulation resistance + Alternative leakage)
• Continuity of protective earth 200mA;
• Insulation Resistance (Riso, Riso-S) 50V, 100V, 250V, 500V;
• Protective conductor current (Direct, Residual, Alternative);
• Touch leakage current (Direct, Alternative);
• Leakage current produced by a floating input, PE current (Direct, Residual);
• Leakage current produced by a floating input, Touch current (Direct);
• Leaks & Power (Itou, Idiff, P, S, Q, PF, THDu, THDi, CosØ, I, U);
• Point to Point Leakage current (Direct)
• Power (P, S, Q, PF, THDu, THDi, CosØ, I, U);
• PRCD test, (2 pole, 3 pole, K/ Di (varistor), S (3-pole)), S+;
• PRCD test (PE conductor, Open conductor, PE probe);
• RCD test (type A, AC, B, B+, F);
• IC-CPD test (EV-RCD, PE conductor);
• Voltage, SELV/PELV;
• Socket test;
• Polarity / Active polarity test;
• EVSE Diagnostic test;
• Clamp current;*
• Functional inspections.

* (With optional A 1472).

Key features

• Ergonomic housing: Experience ultimate convenience with our ergonomic housing, designed for effortless single-handed operation.
• Li-Ion battery: Enjoy extended use and rapid recharging with Li-Ion battery, leveraging advanced Li-Ion technology for longer operation times and quicker charge cycles.
• Pre-defined AUTOSEQUENCE®s: According to: EN 50678, EN 50699, EV-Cables, P-RCDs, Devices with Floating inputs, Audio/video, information and communication technology EN 62368-1.
• Insulation resistance test (50V, 100V): Lower test voltages at insulation resistance tests make it easy to safely evaluate charging stations for e-bikes and other electric transportation devices.
• IC-CPD: Easily test Mode 2 and Mode 3 EV cables with the help of supported compatible adapters.
• Active polarity test: Ensure flawless functionality with our active polarity test, designed to verify devices requiring mains voltage for operation, including P-RCD switches, smart extension leads, and electric vehicle charging cables.
• Colour touch screen: Offers users a quick overview and effortless parameter adjustment, enhancing both efficiency and user experience.
• Auto Continuity: The Auto start feature enables a rapid and efficient assessment of devices with a larger number of metal parts that require inspection.
• Socket test: a socket test function empowers users to troubleshoot connection points effectively. With this feature, you can verify mains voltage, and the integrity of "L / N / PE" wiring, ensuring reliable and accurate confirmation.
• Standby power: Testing of Standby power (Commission regulation No 2023/826).
• Support for PRCD testing: Support for all types of PRCDs, including 2-pole, 3-pole, K/Di (varistor), S (3 pole) and testing with the PE probe.
• BlackBox protocol: The primary purpose of the Black Box protocol is to enable execution of Single tests and AutoSequences via remote applications.
• PC SW Metrel ES Manager: Enables creation of test structures, user-defined AUTOSEQUENCE®s, professional test reports and data transfer for archiving.
• aMESM Android SW: Enables QR code scanning, and uploading of pre-prepared user-defined AUTOSEQUENCE®s.

Technical data

• Dimensions: 150 x 80 x 280 mm
• Mass (without accessories): 1.7 kg
