MI 3311 GammaGT
MI 3311 GammaGT

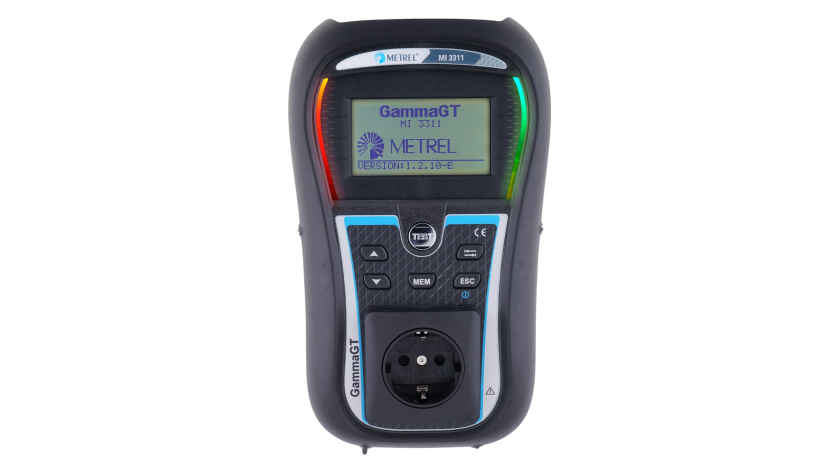

The MI 3311 GammaGT is a battery powered multifunctional instrument intended to perform measurements for testing the electrical safety of portable electrical equipment. Due to large graphical LCD with backlight, two PASS / FAIL LED indicators and HELP screens for each measurement the handling of the instrument is clear and simple. Up to 1500 test results with parameters can be stored in the internal memory of the instrument and then downloaded to the PC for further data handling and creation of test report. Lightweight design, pre-programmed and custom test sequences, optional barcoding, android keyboard application and RFID systems and built-in calibration unit make the MI 3311 an ideal instrument for high volume professional safety testing of portable appliances.
Select a set

Do you own this product?

Repair & Calibration
Technical support
Frequently asked questions
Documentation center
Metrel Academy

Select a set

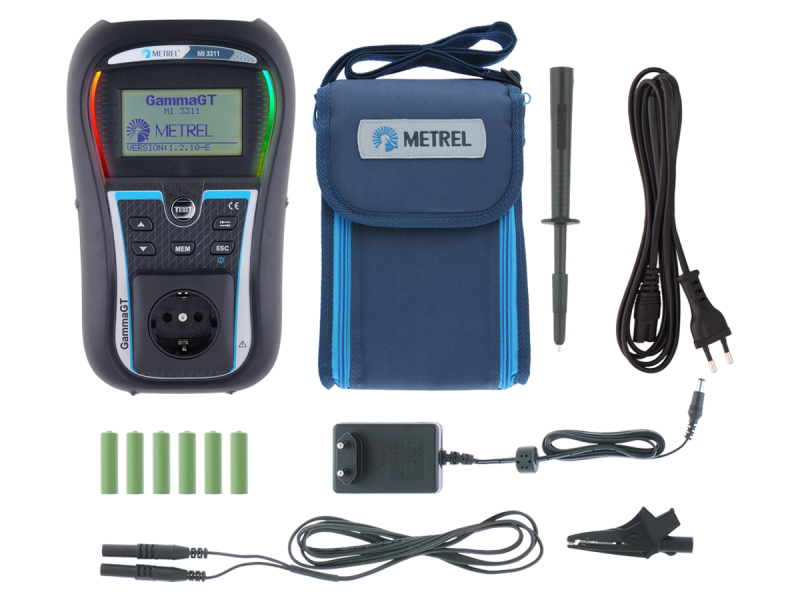

MI 3311 Standard set

  • Instrument GammaGT
  • Small soft carrying bag
  • IEC cable, 2 m
  • Test probe, black
  • Test lead, black, 1.5 m
  • Crocodile clip, black
  • Power supply adapter
  • 6 x AA NiMH batteries
  • Instruction manual
  • Calibration certificate
Add to enquiry
Optional accessories

Standards applied

Building LV Installation

  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - relevant parts

Portable appliances safety

  • PAT Competences: Portable Appliances Safety Testing
  • EN 50699 Recurrent Test of Electrical Equipment
  • EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
  • VDE 0404-1 Testing and measuring equipment for checking the electric safety of electric devices - Part 1: General requirements
  • VDE 0404-2 Testing and measuring equipment for checking the electric safety of electric devices - Part 2: testing equipment for tests after repair, change or in the case of repeat tests
  • VDE 0701 Inspection after repair, modification of electrical appliances - periodic
  • VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
  • IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment

Properties

Measuring functions

  • Continuity test with 200 mA;
  • Insulation resistance;
  • Insulation resistance of isolated accessible conductive parts;
  • Substitute leakage current;
  • Substitute leakage current of isolated accessible conductive parts;
  • IEC cord polarity test;
  • TRMS voltage;
  • Functional and visual inspection.

Key features

  • Autosequencing: pre-programmable VDE compatible autosequences, up to 50 custom prepared autosequences and barcode autotests speed up testing and ensure that no tests are missed.
  • Checkbox: built-in calibration unit performs calibration of the instrument and the calibration results are automatically stored into instrument’s memory.
  • PASS / FAIL: large green and red lights of the LEDs indicate a PASS or FAIL evaluation of test result.
  • Scan and test: optional QR or barcoding system and PASS / FAIL QR or barcode label printing make retesting quick and simple.
  • RFID: support for advanced RFID identification system.
  • User friendly: large LCD screen, two Pass / Fail LED indicators, help screens and warnings make the instrument an extremely easy to use.
  • Multi-tasking: instrument performs continuity test, 250 V and 500 V insulation tests, substitute leakage measurement, functional and polarity tests.
  • Memory: up to 1500 test results with measuring parameters can be stored in two level memory and downloaded to the PC with the help of PC SW PATLink PRO.
  • Built-in charger & rechargeable batteries: instrument has a built-in charging circuit and comes complete with a set of rechargeable NiMH batteries.
  • Android application: enables advanced data management, use of smart phones camera for scanning QR and bar-code.
  • PC SW PATLink PRO enables downloading, viewing, printing of test results and exporting of data to spreadsheet applications.
  • PC SW PATLink PRO Plus enables advanced analysis of test results, upload of pre-programmed custom autosequences and creation of professional test reports.

Technical data

  • Dimensions: 140 x 80 x 230 mm
  • Mass (without accessories): 0.86 kg

Applications

Portable and fixed appliances

Secondary power sources in healthcare

Preventative maintenance

  • Safety of portable appliances

Troubleshooting

  • Appliances troubleshooting

Specifications


Print

Downloads

Datasheet Language Version Release Notes Type Size Download
PC SW PATLink PRO en 1.0 27.03.2012 pdf 358.47 KB
MI 3311 GammaGT en 2021 30.08.2021 pdf 540.01 KB
Manual Language Version Release Notes Type Size Download
MI 3311 GammaGT en 2.2.3 29.10.2021 20 751 625 pdf 1.19 MB Login
MI 3311 GammaPAT Multi-Language 2023 20.01.2023 zip 1.21 MB Login
DoC Language Version Release Notes Type Size Download
EU Declaration of Conformity Multi-Language 06.07.2023 QR code External link Unknown
PC Software Language Version Release Notes Type Size Download
PATLink PRO Demo file Multi-Language 1.0 17.01.2014 Readme zip 1.16 MB Login
SW 0201 PATLink PRO (32-bit) Multi-Language 1.9.33 02.12.2020 Readme zip 490.6 MB Login
SW 0201 PATLink PRO (64-bit) Multi-Language 2.0.6 30.11.2020 Readme zip 373.04 MB Login
Android Language Version Release Notes Type Size Download
SW 1308 PATLink Android en 04.01.2021 QR code External link Unknown
SW 1204 RISK Calculator Android en 04.01.2021 QR code External link Unknown
USB driver Language Version Release Notes Type Size Download
USB driver Multi-Language 2.06.00 10.12.2018 Readme zip 2.99 MB Login
