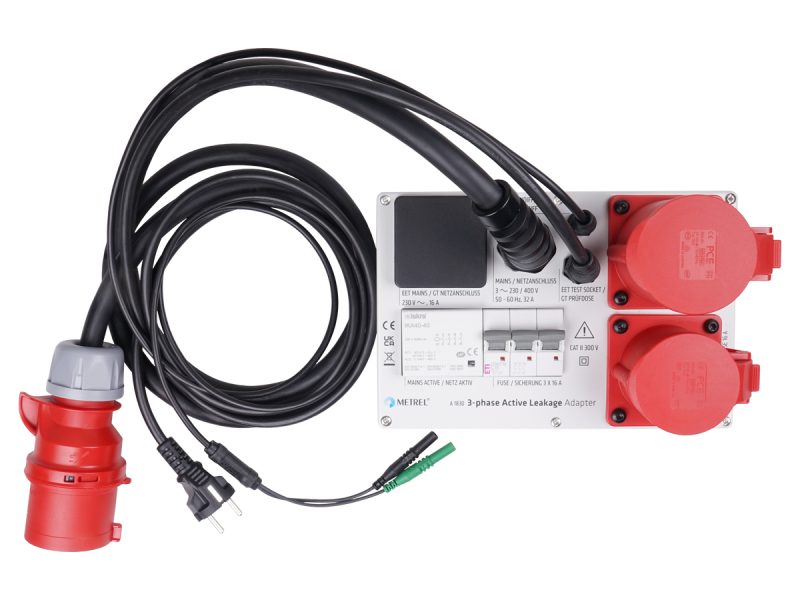

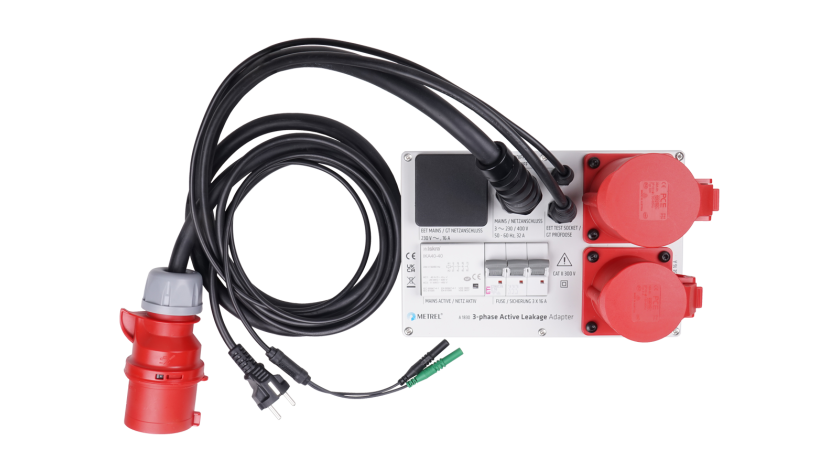

The A 1830 3-phase Active Leakage Adapter is designed for testing, devices which are equipped with a CEE 3-PH/16A 5 pin or CEE 3-PH/32A 5 pin plug. It enables quick and efficient active leakage testing using test instruments primarily designed for testing single phase electrical equipment. If used together with Metrel AUTOSEQUENCES®, prebuilt in the newer multifunctional testers, the complete 3-phase electrical device can be tested with a push of a button. It is possible to create a professional report with MESM SW.
Do you own this product?
Select a set
Standards applied
Portable appliances safety
- PAT Competences: Portable Appliances Safety Testing
- EN 50699 Recurrent Test of Electrical Equipment
- EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
- VDE 0404-1 Testing and measuring equipment for checking the electric safety of electric devices - Part 1: General requirements
- VDE 0404-2 Testing and measuring equipment for checking the electric safety of electric devices - Part 2: testing equipment for tests after repair, change or in the case of repeat tests
- VDE 0701 Inspection after repair, modification of electrical appliances - periodic
- VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
- NEN 3140 Guidelines for safe working practices
- IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment
Instrument safety towards user
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
Properties
Key features
- Built-in CEE 3-PH/32A 5 pin and CEE 3-PH/16A 5 pin test sockets;
- Active testing on 3-phase electrical equipment can be carried out, including, earth continuity, insulation resistance and live leakage test;
- 3-Phase Equipment AUTO SEQUENCE® support;
- MESM report creation;
Technical data
- Dimensions (w x h x l): 250 x 160 x 160 mm
- Weight: 4.3 kg
Specifications
Downloads
Datasheet | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
A 1830 3-phase Active Leakage Adapter | en | 2024 | 05.12.2024 | 628.93 KB |
Manual | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
A 1830 Active 3-phase adapter | en | 1.1.1 | 05.12.2024 | 20753417 | 1.75 MB | Login |
