MI 3394 LN CE MultiTesterXA

Machine and switchboard testers

MI 3394 LN CE MultiTesterXA
MI 3394 LN CE MultiTesterXA
The LINE set is defined to be most ideal for automated testing of equipment on production lines. The MI 3394, in combination with the A 1460, provides the user full hands free operation in executing the tests. Metrel ES manager software enables configuration of test procedures (sequences) which are uploaded to the tester and used for automated testing. Test sequences can be started via a remote pedal or tip commander. Predefined test limits are used for the evaluation of PASS/FAIL status, with results being automatically stored on the microSD memory card. Unique ID of tested equipment can be added via barcode scanner during the test procedure.
Select a set

Do you own this product?

Repair & Calibration
Technical support
Frequently asked questions
Documentation center
Metrel Academy

Select a set

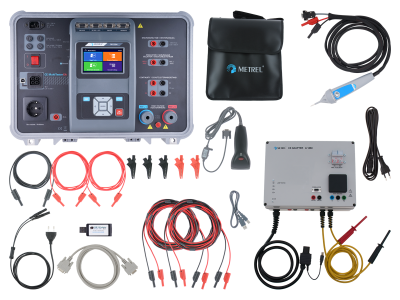

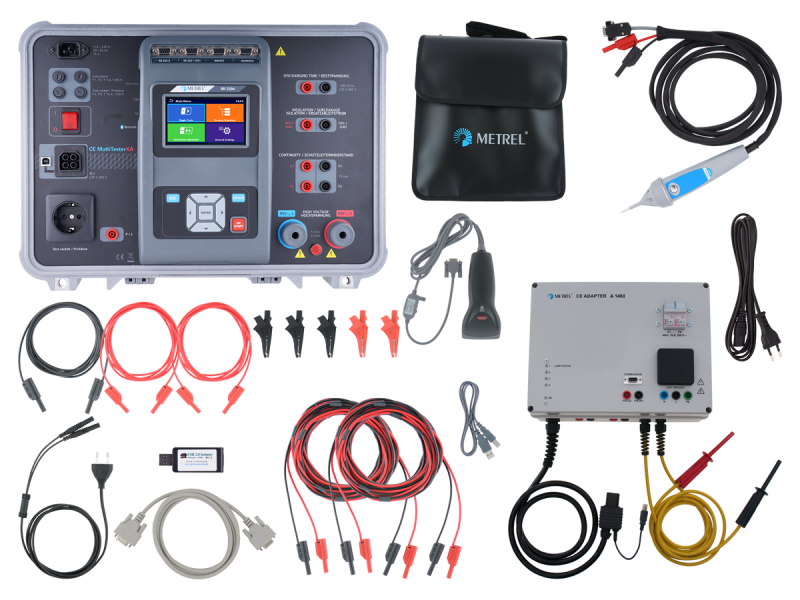

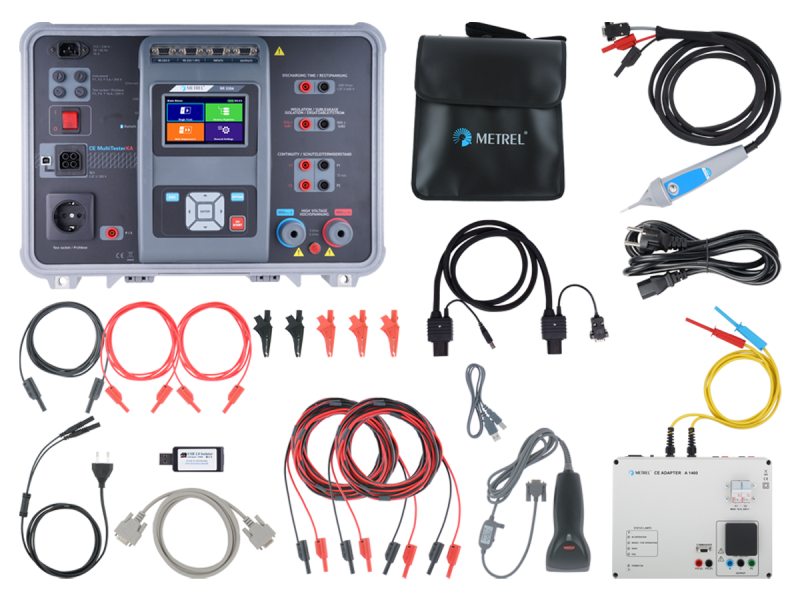

MI 3394 Line set

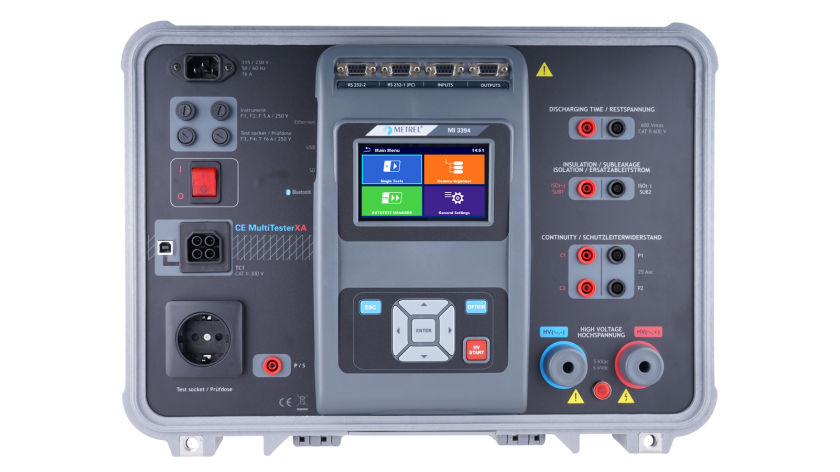

  • MI 3394 Instrument CE MultiTesterXA
  • A 1460 CE Test adapter
  • A 1105 Barcode scanner
  • A 1511 Tip Comander
  • Continuity test lead, 2.5 m, 2 pcs
  • Continuity test lead, red, 1.5 m, 1pcs
  • Insulation test lead, red, 2.5 m
  • Insulation test lead, black, 2.5 m
  • Crocodile clip, black, 3 pcs
  • Crocodile clip, red, 2 pcs
  • Discharge time cable
  • Mains cable
  • Bag for accessories
  • RS232 cable
  • USB cable
  • A 1521 USB isolator
  • Short instruction manual
  • Instruction manual*
  • Metrel ES Manager BASIC Licence*
  • SW 1201 Metrel ES Manager (program installation)*
*Metrel ES Manager and all documentation can be downloaded free of charge from Metrel Web server or Metrel Documentation center.
Add to enquiry
Optional accessories

Videos

Promotional

Demonstration

Standards applied

Building LV Installation

  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - relevant parts

Electrical switchboards safety

  • ESB Competences: Electrical Switchboards Safety Testing
  • IEC/EN 61439-1 Low-voltage switchgear and controlgear assemblies - Part 1: General rules

Machine safety

  • MST Competences: Machines Electrical Safety Testing
  • IEC/EN 50191 Erection and operation of electrical test equipment
  • IEC/EN 60950 Information technology equipment – Safety

Portable appliances safety

  • PAT Competences: Portable Appliances Safety Testing
  • EN 50699 Recurrent Test of Electrical Equipment
  • EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
  • IEC/EN 60335-1 Household and similar electrical appliances - Safety
  • IEC/EN 60598-1 Luminaires - Part 1: General requirements and tests
  • VDE 0701 Inspection after repair, modification of electrical appliances - periodic
  • VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
  • IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment

Instrument safety towards user

  • Directive EMC 89/336/EE on electromagnetic compatibility
  • IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement

Properties

Measuring functions

  • High Voltage, programmed (AC/DC);
  • High Voltage, burn test (optional A 1560);
  • Continuity tests;
  • Insulation resistance measurement;
  • Substitute leakage current;
  • Differential leakage current;
  • Touch leakage current;
  • PE-leakage current;
  • Discharge time;
  • Functional test (power P/S/Q, voltage, current, cos fi, frequency, ThdU, ThdI,PF).

Key features

  • Custom defined automatic test sequences via PCSW Metrel ES Manager.
  • Execution of test sequences via A 1460 CE test adapter.
  • Hands free operation.
  • PASS/FAIL and warning lamps.
  • Programmable inputs and outputs.
  • Programmable messages, pauses and several different flow commands.
  • Execution of all tests via single test terminal.
  • Built-in microSD memory card (8GB supplied with the instrument).
  • A 1460 has a built-in robust fuse housing, enabling countless change of protective fuses.
  • A 1460 has a built-in parallel test terminals to the test socket (enabling the user to plug in custom made test terminal).
  • Test commander has a built in LED torch lamp and PASS/FAIL status LED lamps.
  • Execution of test commands via test commander test button.
  • Bar-code scanner enabling identification of barcode labeled appliances.

Technical data

  • Dimensions (w x h x l): 43,5 x 29,2 x 15,5 cm
  • Mass (without accessories): 17 kg

Applications

Preventative maintenance

  • Safety of portable appliances

Specifications


Print

Downloads

Datasheet Language Version Release Notes Type Size Download
MI 3394 CE MultiTesterXA en 2021 30.08.2021 Single leaflets pdf 1.11 MB
MI 3394 CE MultiTesterXA en 2017 30.08.2021 Brochure pdf 8.54 MB
SW 1203 Metrel SDK en 2022 10.11.2022 pdf 816.54 KB
Manual Language Version Release Notes Type Size Download
MI 3394 CE MultiTesterXA en 3.11.23 06.10.2023 20 752 432 pdf 4.89 MB Login
MI 3394 CE MultiTesterXS Multi-Language 2023 20.01.2023 zip 3.86 MB Login
DoC Language Version Release Notes Type Size Download
EU Declaration of Conformity Multi-Language 06.07.2023 QR code External link Unknown
PC Software Language Version Release Notes Type Size Download
SW 1201 Metrel Electrical Safety Manager (MESM) Multi-Language 1.25.1.56 24.10.2024 Readme zip 440.8 MB Login
Android Language Version Release Notes Type Size Download
SW 1304 aMESM Android en 04.01.2021 QR code External link Unknown
Firmware Language Version Release Notes Type Size Download
MI 3394 EU CE MultiTesterXA Multi-Language 1.63.41.81220e9f 23.11.2023 Readme zip 16.62 MB Login
Auto Sequences Language Version Release Notes Type Size Download
Metrel AUTO SEQUENCEs en 2021 11.03.2021 MI 3394 MACHINE zip 62.38 KB Login
