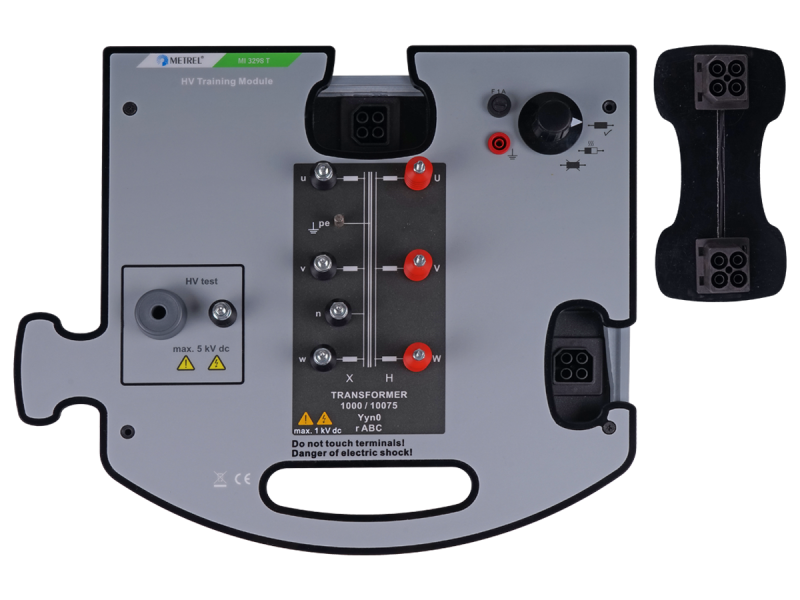

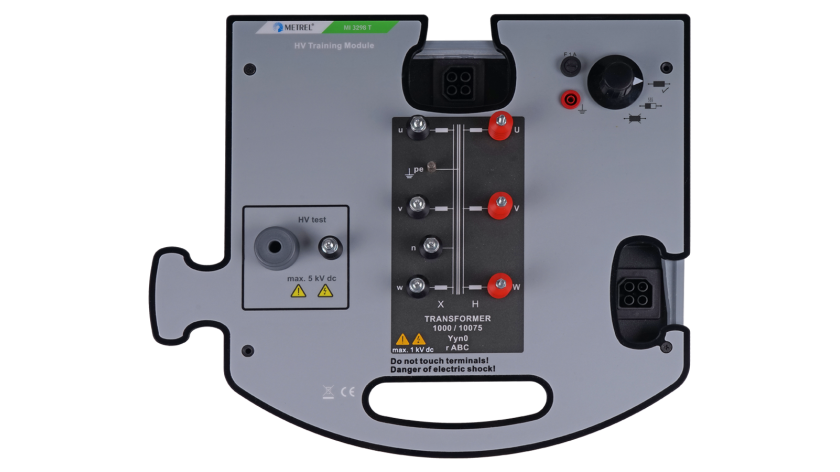

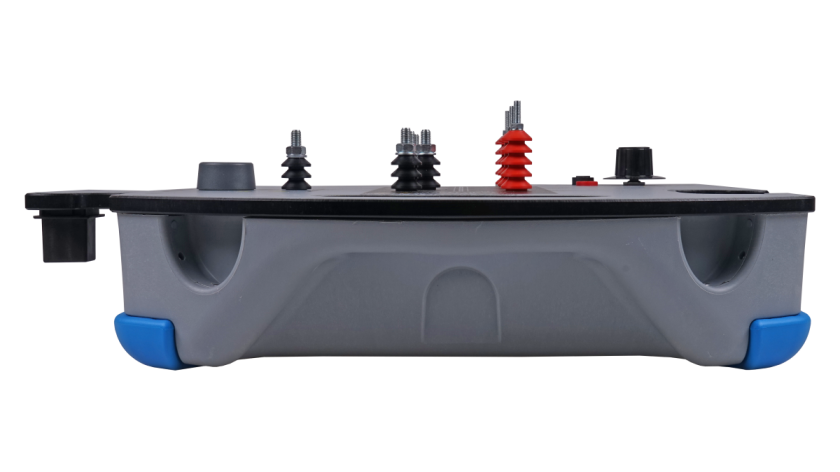

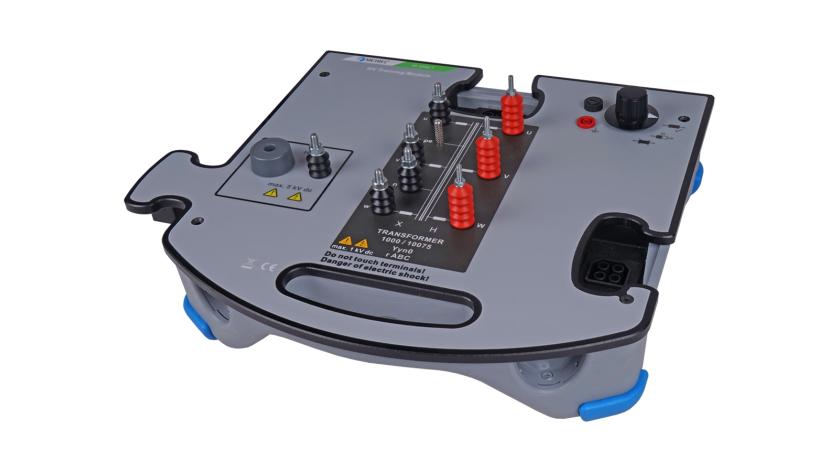

MI 3298 T Transformer/Insulation trainer module
Demonstration boards EE
The MI 3298 T Transformer/Insulation trainer module is designed as a stand-alone module for training different insulation measuring methods as well as basic measuring methods on transformers. It is possible to simulate different types of errors on the transformer. Due to the puzzle concept, other MI 3298 P1 Earth/Ground trainer modules and/or MI 3298 T Transformer/Insulation trainer modules can be joined together to simulate a complete transmission line with a switchyard at the end.
Do you own this product?
Which is the best for you?
Select a set
- MI 3298 T Transformer/Insulation trainer module, code 20 919 238
- Puzzle interconnection part, code 20 052 010
Properties
Key features
- Cable impedance, resistance and insulation;
- HV insulation resistance;
- Winding resistance measurement;
- Transformer turn ration analysis.
Different modules can be evaluated separately as an independent system and / or connected together to demonstrate the interconnectivity problems and influences between them.
This approach could give trained personnel clear information about testing methods, measured values and results on known systems and an overview of situations where systems become more complex when connected together.
Technical data
- Dimensions (w x h x d): 40 x 11 x 33 cm
- Mass: 6,28 kg
Downloads
| Datasheet | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MI 3298 T Transformer/Insulation trainer module | en | 2018 | 02.10.2018 | Single leaflet | 845.78 KB |
|
|
| MI 3298 Power network application trainer | en | 2018 | 21.09.2018 | Brochure | 3.49 MB |
|
| Manual | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MI 3298 Power network application trainer | en | 1.0.1 | 06.09.2018 | 20 752 871 | 15.55 MB |
