MI 3202 GigaOhm 5 kV

High voltage insulation testers

MI 3202 GigaOhm 5 kV
MI 3202 GigaOhm 5 kV

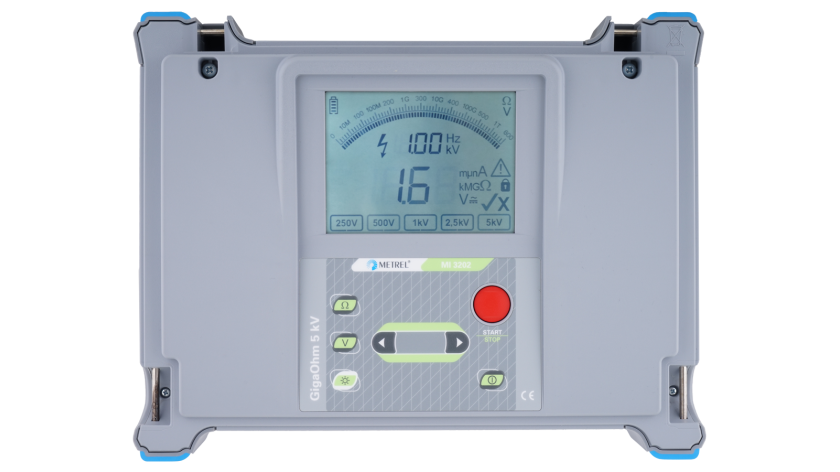

The MI 3202 GigaOhm 5 kV provides quick and accurate testing of insulation resistance. Five test voltages up to 5 kV and 1 TΩ resistance measuring range cover most of the industrial and power distribution applications. The large analogue / digital LCD screen with backlight offers easy reading of test results. The instrument is placed in a rugged carrying case which allows to use it in harsh environments.
Select a set

Do you own this product?

Repair & Calibration
Technical support
Frequently asked questions
Documentation center
Metrel Academy

Select a set

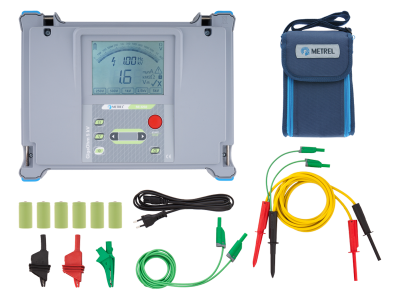

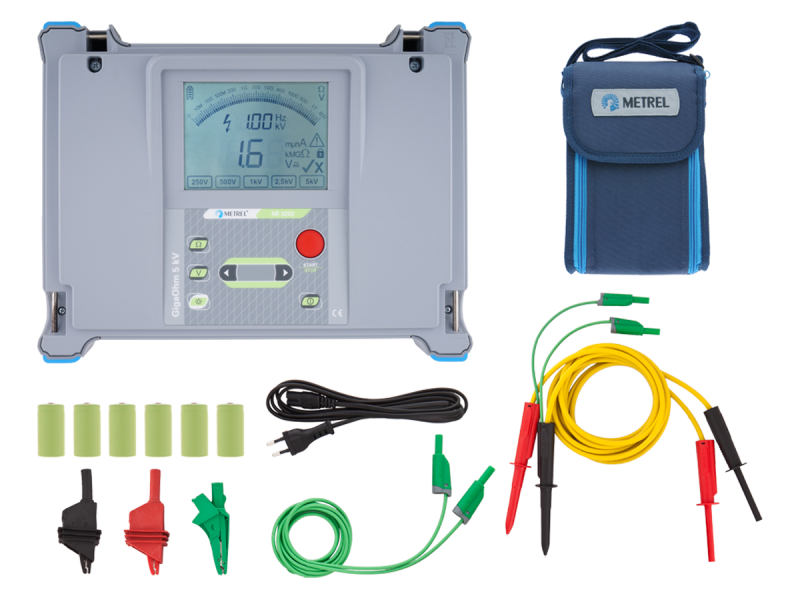

MI 3202 Standard set

  • Instrument MI 3202 GigaOhm 5 kV
  • A 1036 Mains cable
  • A 1808 10 kV shielded test lead with probe, black, 2m
  • A 1807 10 kV shielded test lead with probe, red, 2m
  • 10 kV crocodile clip, 2 pcs (black, red)
  • A 1806 Guard lead, green, 2m
  • A 1309 Crocodile clip, green
  • A 1046 - 6 x 1.2 V NiMh rechargable batteries, type C
  • Calibration certificate
  • Instruction manual
Add to enquiry
Optional accessories

Standards applied

Building LV Installation

  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance

Properties

Measuring functions

  • Insulation resistance measurement;
  • Voltage measurement;
  • Frequency measurement.

Key features

  • Measuring range up to 1 TΩ.
  • Analogue scale and digital LCD: measuring results are displayed both in numeric and analogue form.
  • Quick set-up: quick and easy selection of test voltage (250 V; 500 V; 1 kV; 2,5 kV; 5 kV).
  • Fast testing: 5 mA current source for quick charging of capacitive load.
  • Guard test terminal: for elimination of potential surface leakage currents.
  • Automatic discharge of tested object after test.
  • Safe: high CAT IV / 600 V voltage protection.
  • Easy to read: large bright LCD with backlight.
  • Built-in charger & rechargeable batteries: instrument has a built-in charger and comes complete with a set of rechargeable NiMH batteries.
  • High quality accessories: shielded test leads are included in a standard set.
  • Portable: lightweight 3 kg design with carry handle and shoulder strap.

Technical data

Dimensions (w x h x l): 310 x 130 x 250 mm
Weight (with batteries, without accessories): 3 kg

Specifications


Print

Downloads

Datasheet Language Version Release Notes Type Size Download
MI 3202 GigaOhm 5 kV en 1.0 02.09.2024 pdf 727.07 KB
Manual Language Version Release Notes Type Size Download
MI 3202 GigaOhm 5 kV en 2.1.2 07.05.2024 20 751 271 pdf 1.87 MB Login
