MI 3295 Step Contact Voltage Measuring System

Earth testers

MI 3295 Step Contact Voltage Measuring System
MI 3295 Step Contact Voltage Measuring System
The MI 3295 Step Contact Voltage Measuring System is a voltage measuring system intended for testing and verification of protective earthing of power stations, substation and other power systems. The system consists of Station for current generation and autonomous voltage Meter. Due to high test current (up to 55 A) and effective noise cancellation the MI 3295 ensures very accurate and stable measurements of Step and Contact Voltages with the resolution down to 10 µV. A few voltmeters can be used simultaneously for faster analysis of voltage distribution around the tested object. All test results and parameters can be saved into the instrument’s memory for further downloading, analysis and test report printing with the help of the PC SW Metrel ES Manager or HVLink PRO.
Select a set

Do you own this product?

Repair & Calibration
Technical support
Frequently asked questions
Documentation center
Metrel Academy

Select a set

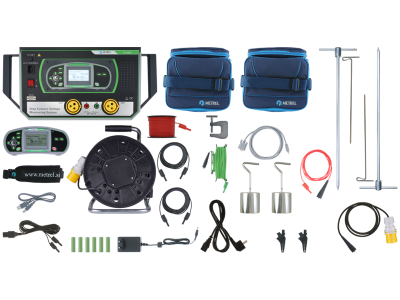

MI 3295 Standard set

  • Instruments MI 3295M and MI 3295S
  • Mains cable
  • Step voltage probe (25 kg), 2 pcs: A 1353
  • Current earth spike A 1529, 2 pcs
  • Potential earth spike, 60 cm A 1629, 2 pcs
  • Current test lead, 50 m, black, 10 mm2, with crocodile clip, on reel, A 1325
  • Current test lead, 10 m, black, 10 mm2, with crocodile clip, A 1392
  • G clamp A 1530
  • Test lead, black, 2 x 3 m
  • Test lead, green, 10 m
  • Test lead, black, 1.5 m
  • Test lead, green, 4 m
  • Test lead, red, 50 m
  • Connection lead with crocodile clip, red, 1 m
  • Crocodile clip, 2 pcs
  • RS232 cable
  • USB cable
  • Soft carrying bag, 2 pcs
  • Soft carrying neck belt
  • NiMH battery cells, type AA, 6 pcs
  • Power supply adapter
  • Calibration certificate
  • Instruction manual
  • Metrel ES Manager BASIC Licence*
  • SW 1201 Metrel ES Manager (program installation)*
  • SW 0113 HVLink PRO*
*HVLink PRO, Metrel ES Manager and all documentation can be downloaded free of charge from Metrel Web server or Metrel Documentation center.
Add to enquiry
Optional accessories

Videos

Instructional

Instructional

Standards applied

Earthing and lightning protection

  • LPSinsp Competences: Lightning Protection of Buildings Inspection
  • LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
  • IEC 62305 Protection against lightning - series
  • IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth

Earthing and Grounding

  • EES Competences: Electrical Energetic Systems Earthing and Grounding Safety
  • HD 637 S1 Power installations exceeding 1 kV a.c.
  • IEEE Guide for Safety in AC Substation Grounding
  • IEEE 81-2012 IEEE Guide for Measuring Earth Resistivity, Ground Impedance, and Earth Surface Potentials of a Grounding System
  • IEEE 367-2012 - IEEE Recommended Practice for Determining the Electric Power Station Ground Potential Rise and Induced Voltage from a Power Fault
  • RAT 2008 Spanish high-voltage regulation

Properties

Measuring functions

  • Step voltage;
  • Contact voltage;
  • Specific earth resistance;
  • Earth resistance;
  • Potential;
  • Leakage current.

Key features

  • Accurate: high accuracy of the measurements due to a high current of up to 50 A and effective suppression of noise.
  • Noise immunity: excellent immunity even against changing earth currents.
  • Autonomous Step Voltage meter: no need for long potential leads; a few meters can be used simultaneously.
  • Safe: high safety due to low output voltage (55 V).
  • Low weight: the weight of the Station is 29.5 kg only.
  • Memory: up to 1000 test results can be saved into the 3-level internal memory of the system.
  • PC SW Metrel ES Manager or HVLink PRO included in the standard set enables downloading and analysis of results and printing of test reports.

Technical data

Station

  • Dimensions (w x h x l): 563 X 275 X 257 mm
  • Weight (with batteries, without accessories): 29.5 kg

Meter

  • Dimensions (w x h x l): 230 X 103 X 115 mm
  • Weight (with batteries, without accessories): 1.3 kg

Specifications


Print

Downloads

Datasheet Language Version Release Notes Type Size Download
PC SW HVLink PRO en 1.0 03.04.2012 pdf 228.88 KB
MI 3295 Step Contact Measuring System en 2018 02.07.2018 pdf 620.72 KB
Manual Language Version Release Notes Type Size Download
MI 3295 Step Comtact Voltage Measuring System en 2.6.4 13.05.2022 20 752 071 pdf 2.42 MB Login
MI 3295 Step Comtact Voltage Measuring System Multi-Language 2023 20.01.2023 zip 3.45 MB Login
PC Software Language Version Release Notes Type Size Download
SW 0113 HVLink PRO en 11.10 02.09.2021 Readme zip 21.81 MB Login
SW 1201 Metrel Electrical Safety Manager (MESM) Multi-Language 1.25.1.56 24.10.2024 Readme zip 440.8 MB Login
Firmware Language Version Release Notes Type Size Download
MI 3295M en 1.58 13.12.2023 zip 606.98 KB Login
MI 3295S en 1.35 29.01.2021 zip 563.73 KB Login
