MI 3290 GF Earth Analyser

Earth testers

MI 3290 GF Earth Analyser
MI 3290 GF Earth Analyser MI 3290 GF Earth Analyser

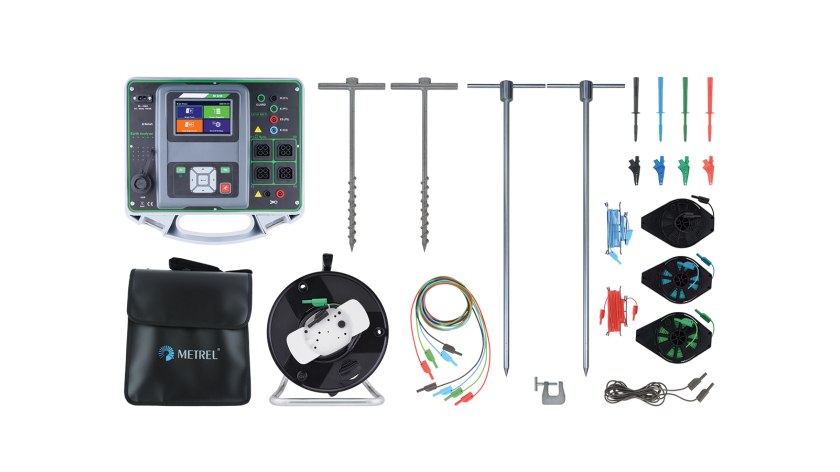

MI 3290 with BASIC ACCESSORIES included in all MI 3290 sets:

  • MI 3290 instrument
  • A 1529 Current earth spike 90 cm, 2 pcs
  • A 1528 Potential earth spike 42 cm, 2 pcs
  • A 1700 Connection lead black 2 m
  • A 1526 Test lead 5 m blue
  • A 1527 Test lead 5 m red
  • A 1509 Test lead 50 m black on cable reel
  • A 1510 Test lead 50 m green on cable reel
  • A 1525 Test lead 50 m blue on cable reel
  • A 1508 Shielded test lead 75 m on reel
  • A 1530 G clamp
  • Set of: test probe, crocodile clip and 2 m test lead, 4 pcs
  • A 1081 Bag for accessories
  • A 1727 USB cable
  • Mains cable (national specific)
  • Instruction manual,
  • PC SW Metrel ES Manager
  • Calibration certificate

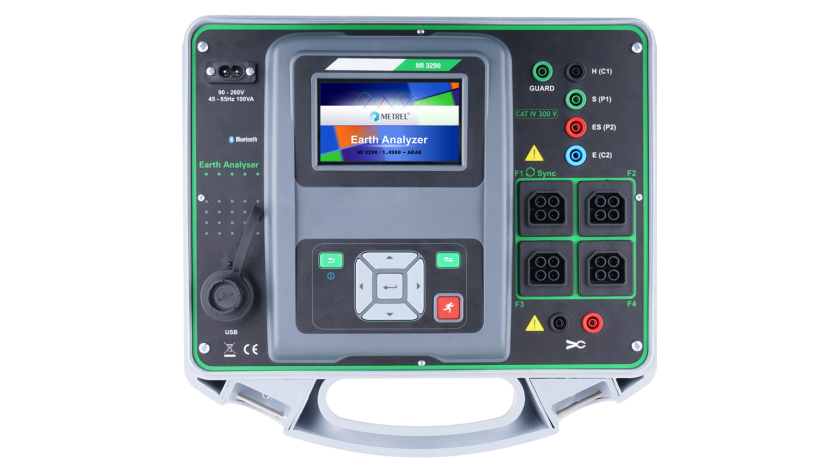

MI 3290 Earth Analyser is a portable, battery or mains powered test instrument with excellent IP protection (IP 54 open case), intended for measurement of earth resistance, specific earth resistance and earth potential of various energetic and non-energetic objects. The user can choose between different methods from classic 3 wire earth resistance measurement up to one or four clamp method for measurement of pylons. He has a choice of measurement methods with different frequency methods: single frequency or frequency sweep from 55 Hz to 15 kHz, HF method with 25 kHz and pulse method simulating the lightning strike. High electrical noise immunity makes this instrument best suited for industrial environment. Instrument is available in multiple sets which are a combination of different accessories and measurement functions.

Select a set

Do you own this product?

Repair & Calibration
Technical support
Frequently asked questions
Documentation center
Metrel Academy

Select a set

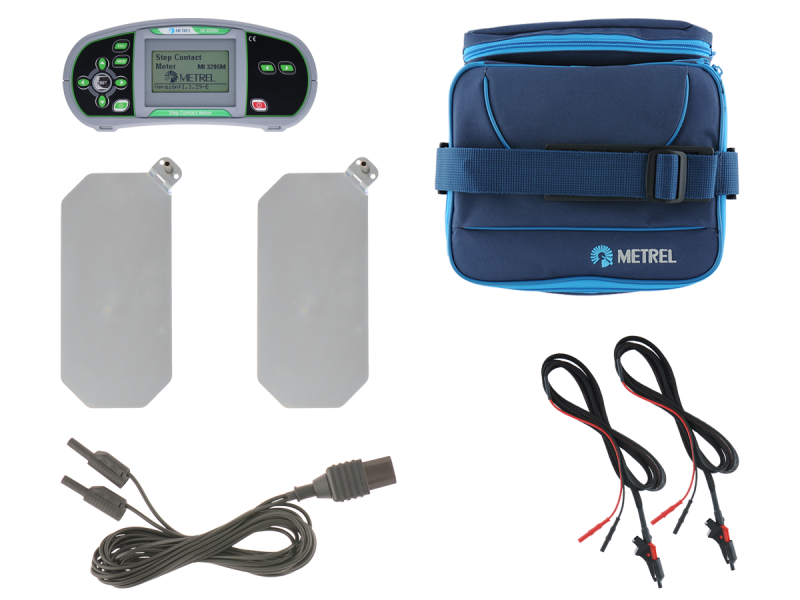

MI 3290 GF set

  • MI 3290 with basic accessories
  • P 1203 EU Licence GF (factory installed on instrument)
  • MI 3295M Voltmeter
  • A 1709 Test lead 2 wire, 3m
  • A 1289 Soft carrying bag
  • S 2053 Step voltage test plates, 2 pcs
  • S 1072 Continuity test lead with crocodile clip, 2 x 2.5 m, 2 pcs
  • A 1707 soft carrying neck belt
  • S 2080 1,2 V, 2100 mAh rechargeable batteries type AA
  • Power supply adapter *
  • A 1726 RS 232 cable
* National specific: as universal adapter with national specific power cable or all-in-one adapter
Add to enquiry
Optional accessories

Videos

Instructional

Instructional

Standards applied

Earthing and lightning protection

  • LPSinsp Competences: Lightning Protection of Buildings Inspection
  • LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
  • IEC 62305 Protection against lightning - series
  • IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth

Earthing and Grounding

  • EES Competences: Electrical Energetic Systems Earthing and Grounding Safety
  • IEEE Guide for Safety in AC Substation Grounding
  • IEEE 81-2012 IEEE Guide for Measuring Earth Resistivity, Ground Impedance, and Earth Surface Potentials of a Grounding System
  • IEEE 142 Recommended Practice for Grounding of Industrial and Commercial Power Systems
  • IEEE 367-2012 - IEEE Recommended Practice for Determining the Electric Power Station Ground Potential Rise and Induced Voltage from a Power Fault
  • EN 50522 Earthing of power installations exceeding 1 000 V a.c.

Properties

Measuring functions

  • Earth Resistance 2,3,4 -pole;
  • Specific Earth Resistance (Wenner and Schlumberger method);
  • Low Ohm measurement 7 mA and 200 mA;
  • Earth Potential;
  • Step and contact measurements.

Key features

  • Possibility of performing different types of earth measurements with a single instrument.
  • Analysis of earth impedance as a function of the frequency due to a wide measurement frequency band (55 Hz ... 15 kHz).
  • Earth measurements on pylons with protective earth cable connected.
  • Sweep mode Z(f) on screen.
  • High resolution colour touch screen, 4.3” TFT.
  • Floating Mains (universal 90 … 260 V AC) or battery powered (built in fast charger).
  • High degree of protection: IP 65 case closed, IP 54 case open.
  • Checkbox - different self-check methods.
  • DC resistance measurements.
  • Support for single or automated measurements.
  • PC SW for measurement pre and post processing: preparation of the test structure, result download, tree-view, table view and graphical view, storing and printing.

Technical data

Station

  • Dimensions (w x h x l): 360 X 160 X 330 mm
  • Weight (with batteries, without accessories): 6 kg

Meter

  • Dimensions (w x h x l): 230 X 103 X 115 mm
  • Weight (with batteries, without accessories): 1.3 kg

Specifications


Print

Downloads

Datasheet Language Version Release Notes Type Size Download
MI 3290 Earth Analyser en 2018 25.10.2018 pdf 2.39 MB
SW 1203 Metrel SDK en 2022 10.11.2022 pdf 816.54 KB
Manual Language Version Release Notes Type Size Download
MI 3290 Earth Analyser en 1.4.7 29.10.2021 20 752 597 pdf 4.59 MB Login
MI 3290 Earth Analyser Multi-Language 2023 20.01.2023 zip 4.27 MB Login
DoC Language Version Release Notes Type Size Download
EU Declaration of Conformity Multi-Language 06.07.2023 QR code External link Unknown
Presentation Language Version Release Notes Type Size Download
MI 3290 Earth Analyser en 2017 12.05.2017 pdf 2.35 MB Login
