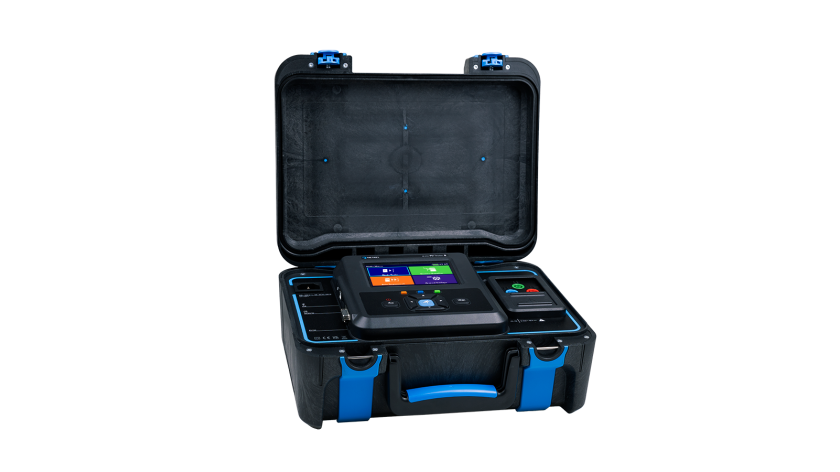

MI 3114 PV Tester New

Photovoltaic and electrical installation testers

The MI 3114 PV Tester is a powerful instrument for testing photovoltaic (PV) systems with a maximum system voltage of up to 1500 V and a maximum short circuit current of 40 A. It supports testing in compliance with the IEC 62446-1 standard and supports all measurement procedures, which cover all category 1 tests. This includes PV-specific measurements like insulation resistance measurement of PV strings, Isc and Uoc measurements, as well as the calculation of measured results to STC values and comparison with nominal values given by the PV module's manufacturer. The irradiation and cell temperature are measured in real time with the wireless remote unit. Additionally, all category 1 tests are collected in a single auto test, which enables the user to execute all the tests with a single touch of the start button. The instrument can be controlled via a large colour touch screen display from which the user can prepare and start selected tests or measurements, store results, and review them. It is also possible to change previously entered wrong parameters on an already executed measurement or a group of measurements.

Select a set

Do you own this product?

Repair & Calibration

Technical support

Frequently asked questions

Documentation center

Metrel Academy

Which is the best for you?

New

Explore products in Product Finder

Select a set

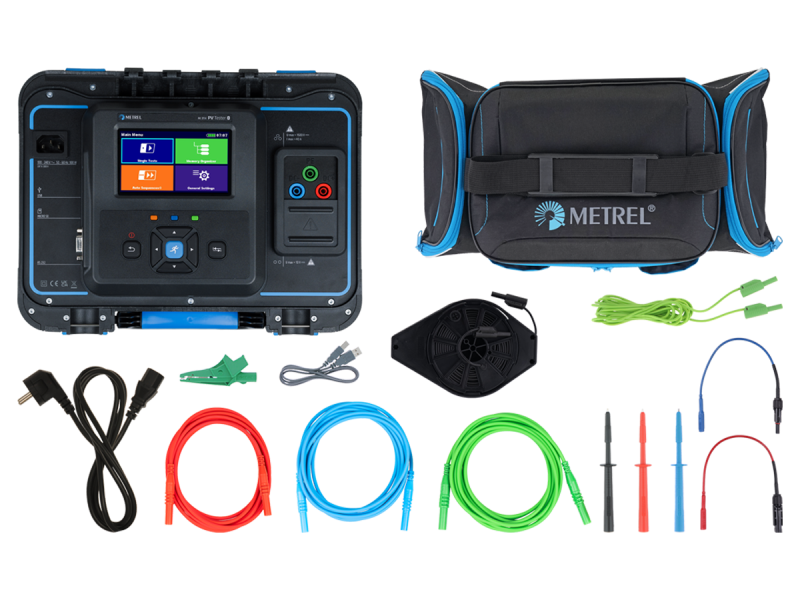

MI 3114 Standardni set

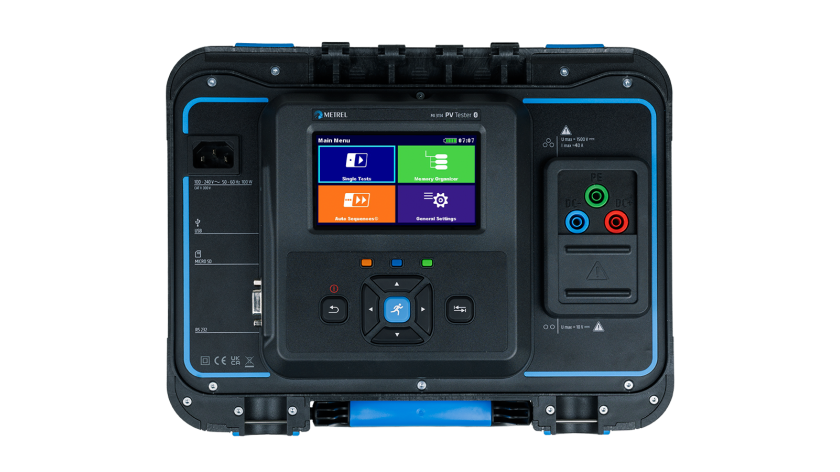

Instrument MI 3114
A 1790 BLU Test lead, Blue, 3m, 2.5mm2
A 1790 RED Test lead, Red, 3m, 2.5mm2
A 1792 Test lead, Green, 3m, 0.75mm2
S 2146 Set PV MC4 to banana adapters 1500 V
A 1509 Test lead, Black, 50m, 0.75mm2
A 1012 Test lead, Green, 4m, 0.75mm2
A 1309 Crocodile clip, Green
A 1014 Test probe, Black
A 1015 Test probe, Blue
A 1016 Test probe, Red
A 1727 Communication cable, 1m, USB type B/A
A 1728 Power cable, 2m, 3x0.75mm2
A 1551 Soft padded carrying bag, Size: L
SW 1201 Metrel ES Manager (MESM)
P 1000-EU Licence key basic
Calibration certificate for MI 3114
User Manual

Add to enquiry

Optional accessories

Featured

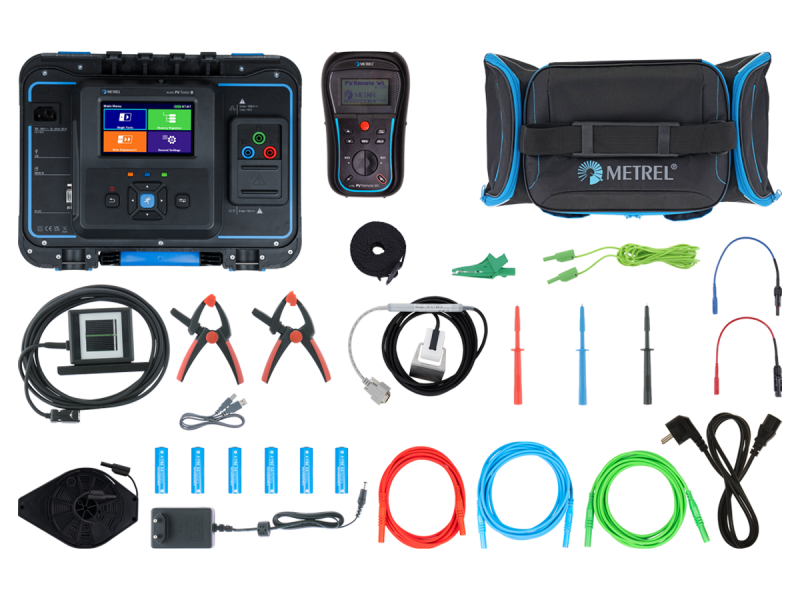

MI 3114 Pro set

Standard set MI 3114 ST
A 1785 PV remote unit
A 1833 PV temperature sensor
A 1834 PV reference cell
2x A 1835 Clamp for attaching accessories
A 1791 Carrying strap with tightening buckle
S 2080 6 Rechargeable batteries 1,2 V, 2100 mAh, type AA
A 1548 Power supply adapter 0,5A/12V
Calibration certificate for A 1785

Add to enquiry

Optional accessories

Standards applied

Building LV Installation

EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
IEC/EN 60364 Electrical Installations for Buildings series
IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance

Photovoltaic systems

IEC/EN 62446 Photovoltaic (PV) systems - Requirements for testing, documentation and maintenance
EN 62466-1 Photovoltaic (PV) systems. Requirements for testing, documentation and maintenance – Part 1: Grid connected systems – Documentation, commissioning tests and inspection
EN 62466-2 Photovoltaic (PV) systems. Requirements for testing, documentation and maintenance – Part 2: Grid connected systems – Maintenance of PV systems

Instrument safety towards user

IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits

EMC safety

IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Properties

Measuring functions

1500 V insulation resistance of strings
Continuity of PE conductors
Polarity test
Isc and Uoc test

Key features

Auto test for Category1 tests.
Calculation of STC values and comparison with nominal data.
Correction of previously wrong entered parameters on already executed measurement or group of measurements.
Memory organizer, operations on single or group of measurements, search functionality, PV modules database handler.
Wireless (Wi-Fi) remote unit for measuring of irradiation and cell temperature.
AUTOSEQUENCE
PC SW Metrel ES Manager to prepare measurement structure and measurements in advance, upload or download that structure and then reviews the results, PV modules DB explorer and as final act, the generation of professional report.
