A 1532 XA EVSE adapter Featured
eMobility
The A 1532 EVSE XA adapter is used for verification of electrical safety and functional testing of EVSE together with supported METREL installation testers. It is intended for testing Mode 3 EV supply equipment with a type 2 connector. XA version supports 3 phase load testing up to 13 A and different error types, including PE open. If used together with Metrel AutoSequences®, prebuilt in the newer multifunctional testers, the complete EVSE charging station can be tested (state-by-state) electrically and functionally with a push of a button. It is possible to create a professional station-based report with MESM.
Do you own this product?
Which is the best for you?
Select a set

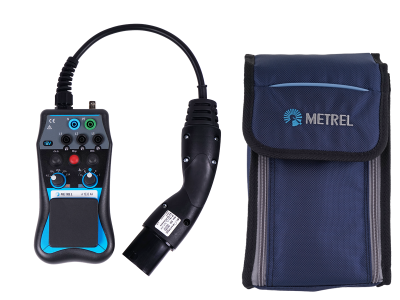

- Instrument XA EVSE adapter
- Small soft carrying bag
- Instruction manual
Standards applied
Building LV Installation
- EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
- EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
Mobile Units Electrical Safety
- ISO 6469-3 - Electrically propelled road vehicles Safety specification Part 3: Electrical safety
Electrical Vehicle Supply Equipment
- EVSE Competences: Electrical Vehicle Supply Equipment Safety
Properties
Key features
- Banana socket outputs for connection to a 3-phase installation tester;
- Voltage indicators on EVSE output;
- Proximity Pilot resistance selector for simulation of EV cable presence and current rating detection;
- Control Pilot resistance selector for simulation of electric vehicle status;
- Socket output for connection to a 1-phase installation tester (Phase 1, Neutral, PE);
- Type 2 Male Plug connector for connection to EVSE;
- 6 mA EV RCD support;
- Functional tests support;*
- EVSE AUTO SEQUENCE® support;*
- MESM report creation;**
- Load testing up to 13 A on socket - 1 phase or on banana sockets - 3 phase;
- Fault simulation of Diode short, PE-CP short and PE open;
- Output BNC connector for CP signal monitoring.
* Functional tests and AUTO SEQUENCE® are supported only on the MI 3155 Eurotest XD, MI 3152 EurotestXC and MI 3152 H EurotestXC 2.5 kV testers.
** Report printing is only available via the MESM PC SW. The MESM license (P 1101) is to be purchased separately.
Technical data
- Dimensions (w x h x l): 200 x 100 x 70 mm
- Mass (without accessories): 0.90 kg
Applications
e-Mobility
- EVSE domestic installation testing
- EVSE periodic inspection
- Renewable power and car charging
Mobile installations
- Vehicles with an on-board generator
