MI 3102H BT EurotestXE 2,5 kV

Multifunctional testers

MI 3102H BT EurotestXE 2,5 kV
MI 3102H BT EurotestXE 2,5 kV

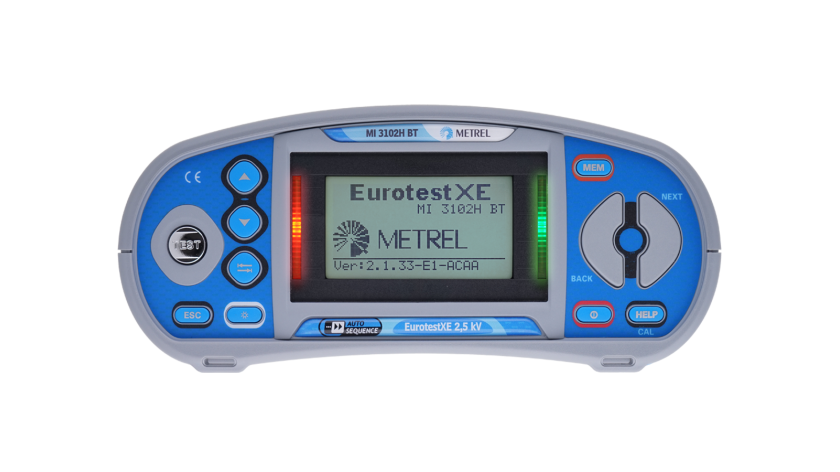

MI 3102H BT EurotestXE 2,5 kV is a multifunctional measuring instrument which apart from all the necessary functions for complete installation safety testing according to IEC/EN 61557 performs insulation resistance measurement with the test voltage up to 2,5 kV (measuring range is up to 20 GΩ) and enables diagnostic test by PI and DAR indexes calculation. Besides, the MI 3102H BT EurotestXE 2,5 kV enables on-line voltage monitoring, phase sequence testing, earth resistance measurement, illuminance measurement and TRMS current measurement. EurotestXE 2,5 kV is equipped with integrated characteristics of fuses and RCDs for PASS / FAIL evaluation of test results. All the results can be quickly saved and referenced on the instrument and then downloaded via the EuroLink PRO software (included in the standard set) to the computer for evaluation and report generation after testing.
Select a set

Do you own this product?

Repair & Calibration
Technical support
Frequently asked questions
Documentation center
Metrel Academy

Select a set

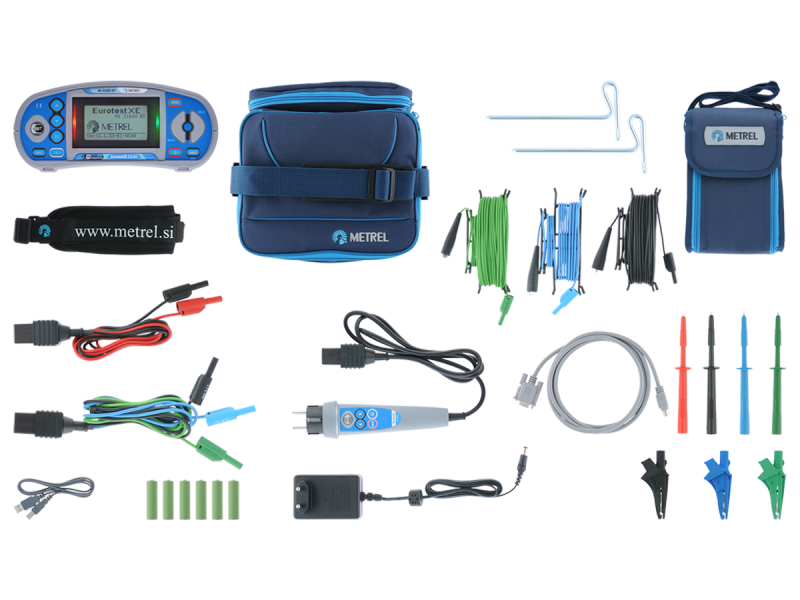

MI 3102H BT Standard set

  • Instrument MI 3102H BT EurotestXE 2,5 kV
  • Plug commander, 1.5 m
  • 2.5 kV test lead, 2 x 1.5 m
  • Test lead, 3 x 1.5 m
  • Earth test set, 3-wire, 20 m (test lead, 4 m; 2 x test lead, 20 m; 2 x test rod)
  • Power supply adapter + 6 NiMH rechargeable batteries, size AA
  • PC Software EuroLink PRO
  • Test probe, 4 pcs (blue, black, green, red)
  • Crocodile clip, 4 pcs (blue, black, green, red)
  • RS232 - PS/2 cable
  • USB cable
  • Soft carrying neck belt
  • Soft carrying bag
  • Calibration certificate
  • Short instruction manual
  • Instruction manual*
  • PC Software SW 0101 EuroLink PRO*
*SW 0101 EuroLink PRO and all documentation can be downloaded free of charge from Metrel Web server or Metrel Documentation center
Add to enquiry
Optional accessories

Standards applied

Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 60364 Electrical Installations for Buildings series
  • IEC/EN 60364-6 Electrical Installations for Buildings - Verification
  • IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
  • IEC/EN 60755 General safety requirements for residual current operated protective devices
  • IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
  • IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
  • IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
  • IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
  • IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
  • IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
  • IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
  • VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • AS / NZ 3017 Electrical installations – Verification guidelines
  • BS 7671 IEE Wiring Regulations (18th edition)
  • CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current

Earthing and lightning protection

  • LPSinsp Competences: Lightning Protection of Buildings Inspection
  • LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
  • IEC 62305 Protection against lightning - series
  • IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
  • IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding

Power quality

  • PQA Competences: Power Quality Analyzing & Reporting
  • IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)

Instrument safety towards user

  • Directive EMC 89/336/EE on electromagnetic compatibility
  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series

Properties

Measuring functions

  • Insulation resistance with DC voltage 50 V to 2,5 kV and PI, DAR calculation;
  • Continuity of PE conductors with 200 mA DC test current with polarity change;
  • Continuity of PE conductors with 7 mA test current without RCD tripping;
  • Continuity RPE with 200 mA AC on outlet;
  • Line/Loop impedance;
  • Loop impedance with Trip Lock RCD function;
  • TRMS voltage and frequency;
  • Phase sequence;
  • Power and harmonics;
  • RCD testing (general and selective, type AC, A, F);
  • Earth resistance (3-wire and 2-clamps method);
  • Specific earth resistance with Ro-adapter (option);
  • TRMS leakage and load currents (option);
  • Illumination (option).

Key features

  • Predefined mini AUTOSEQUENCEs:
  • Auto TT (U, Zln, Zs, Uc);
  • Auto TN/RCD (U, Zln, Zs, Rpe);
  • Auto TN (U, Zln, Zlpe, Rpe).
  • Insulation range: wide range of insulation test voltages from 100 V to 2500 V, readings up to 20 GΩ.
  • Insulation diagnostics: polarisation Index (PI) and Dielectric Absorption Ratio (DAR) calculation.
  • Power measurements and harmonics analysis.
  • Built-in help screens for referencing on site.
  • Built-in fuse tables for automatic evaluation of the line / loop impedance result.
  • On-line voltage monitoring: monitors all 3 voltages in real-time.
  • Polarity swap: automatic polarity reversal on continuity test.
  • Trip Lock function: loop impedance test without tripping the RCD.
  • Built-in charger & rechargeable batteries: unit has a built-in charging circuit and comes complete with a set of rechargeable NiMH batteries.
  • RCD auto: automated RCD testing procedure.
  • Bluetooth communication with PC, Android tablets and smart phones via built-in BT.
  • PC SW EuroLink PRO for downloading of test results and report creation.
  • EuroLink Android APP, data management tool (option).

Software

  • PC SW EuroLink PRO is a strong creating tool of professional Visual Inspection Report and Testing Result Report.

Technical data

  • Dimensions (w x h x l): 230 x 103 x 115 mm
  • Mass (without accessories): 1.3 kg

Specifications
