S 2110 Safety system with safety light curtains
Accessories

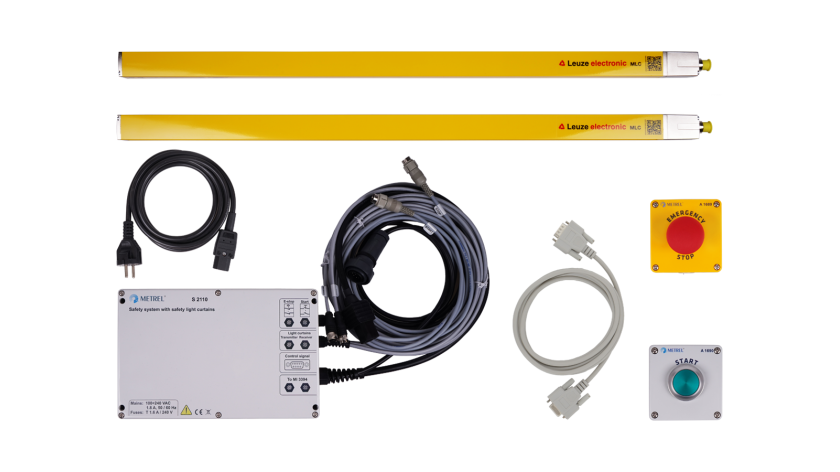

S 2110 Standard set
- S 2110 Safety system with safety light curtains
- A 1728 Mains cable C13 / Schuko, 3 x 0.75 mm2, 2 m
- A 1690 Start button
- A 1689 Emergency stop button
- A 1017 Communication cable, RS232, 2 m
This safety module is a production friendly safety component that does not physically impact on the actions of the operator. The goal of light curtains is to provide safety by ceasing test system operations if an object crosses a specified safety zone. The light curtains monitor if any object has breached inside the prohibition zone, if the light curtains detect a breach the safety module will disconnect the measuring circuits from the mains.
Do you own this product?
Standards applied
Electrical switchboards safety
- ESB Competences: Electrical Switchboards Safety Testing
- IEC/EN 61439-1 Low-voltage switchgear and controlgear assemblies - Part 1: General rules
Machine safety
- MST Competences: Machines Electrical Safety Testing
- IEC/EN 50191 Erection and operation of electrical test equipment
- IEC/EN 60950 Information technology equipment – Safety
Portable appliances safety
- PAT Competences: Portable Appliances Safety Testing
- IEC/EN 60335-1 Household and similar electrical appliances - Safety
- IEC/EN 60598-1 Luminaires - Part 1: General requirements and tests
- VDE 0701 Inspection after repair, modification of electrical appliances - periodic
- VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
Instrument safety towards user
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
Properties
Key features
- No opening and closing necessary;
- Quick handling;
- The highest protection grades up to PLe or SIL3 can be achieved;
- Protection against direct contact;
- All components in the safety modules are approved safety devices;
- Simple integration into the measuring system.
Optional accessories

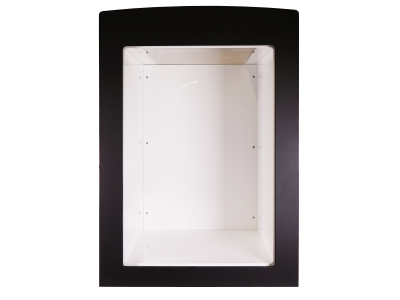

A 1676 Single chamber test cage
The A 1676 Single chamber test cage construction is designed “ready” for integration of light curtain safety module. The safety module provides the automatic protection against direct contact by light curtains. If the light curtain detects the bridge inside the prohibition zone, the safety module disconnects measuring circuits from the mains. No closing door is needed.
Downloads
| Datasheet | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| S 2110 Safety system with safety light curtains | en | 2021 | 24.02.2021 | 521.12 KB |
|
| Manual | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| S 2109 / S 2110 / S 2111 / S 2115 Safety system | en | 1.1.1 | 24.02.2021 | 20 753 023 | 2.01 MB |
