S 2109 Safety system with RFID sensor
Accessories

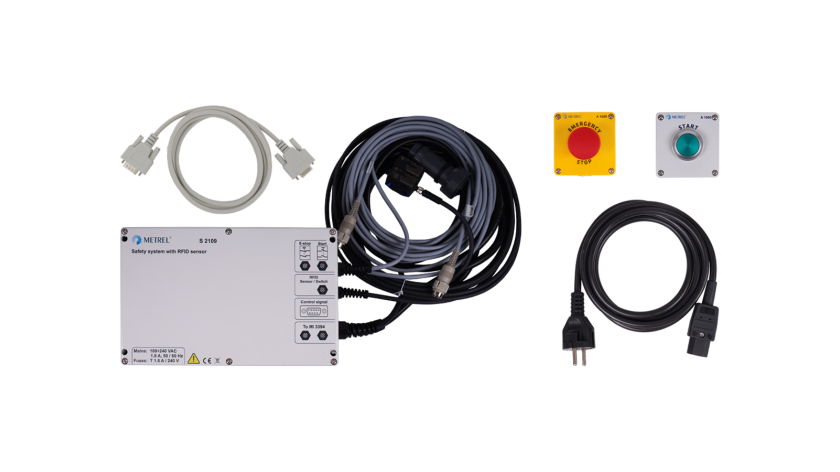

S 2109 Standard set
- S 2109 Safety system with RFID sensor
- A 1728 Mains cable C13 / Schuko, 3 x 0.75 mm2, 2 mA
- 1690 Start button
- A 1689 Emergency stop button
- A 1017 Communication cable, RS232, 2 m
This Safety module is designed for test places where protective cover or safety door is used. The module is intended for protection with an RFID sensor and emergency switch. The RFID switch indicates the state (opened/ closed) of the door of the cage or cabinet. If the door is opened the safety module will disconnect the measuring circuits from the mains, which results in the maximal protection for the operator. The safety module is equipped also with the emergency switch and the START button.
Do you own this product?
Standards applied
Electrical switchboards safety
- ESB Competences: Electrical Switchboards Safety Testing
- IEC/EN 61439-1 Low-voltage switchgear and controlgear assemblies - Part 1: General rules
Machine safety
- MST Competences: Machines Electrical Safety Testing
- IEC/EN 50191 Erection and operation of electrical test equipment
- IEC/EN 60950 Information technology equipment – Safety
Portable appliances safety
- PAT Competences: Portable Appliances Safety Testing
- IEC/EN 60335-1 Household and similar electrical appliances - Safety
- IEC/EN 60598-1 Luminaires - Part 1: General requirements and tests
- VDE 0701 Inspection after repair, modification of electrical appliances - periodic
- VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
Instrument safety towards user
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
Properties
Key features
- The highest protection grades up to PLe or SIL3 can be achieved, protection against direct contact;
- All components in the safety modules are approved safety devices;
- Simple integration into the measuring system.
Optional accessories
A 1650 Single chamber test cage

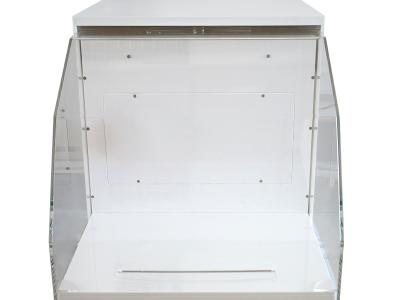

The A 1650 Single chamber test cages provides automatic protection against direct contact. Its construction is designed “ready” for integration of RFID safety module. The safety module’s “coded” RFID sensor is monitoring the “cage closed” position, this enables the test system to prevent touching of the DUT throughout the test sequence where dangerous voltages can occur. Passive tests can be normally generated also at opened doors. Malfunction or misuse is practically impossible.
