A 1626 Connection box 1-phase
Accessories
A 1626 Standard set
- A 1626 Connection box, 1-phase
- A 1710 Test lead, red, 1.5 m
- A 1064 Crocodile clip, red

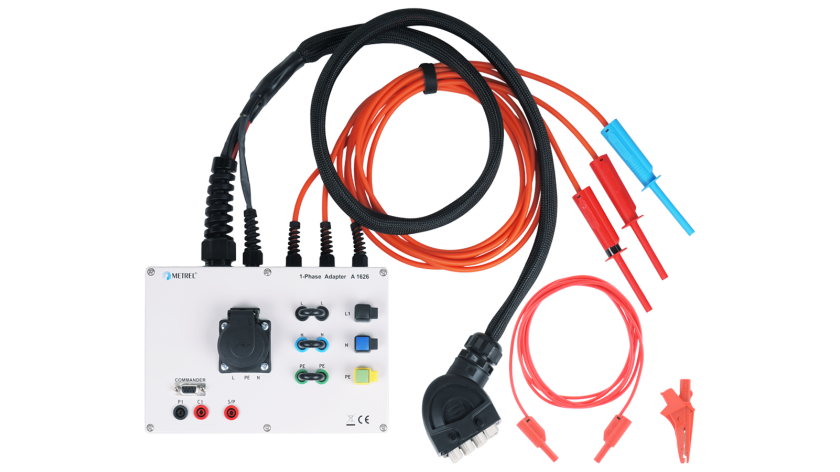

Diversity of electronic products, which need to be tested, present a many challenges for the manufacturers. Different sizes, shapes and configurations of electronic devices make it challenging for electrical safety examination. Due to these facts Metrel has developed different types of connection boxes, which can be easily adopted to customer’s needs. The A 1626 connection box is a passive devices that acts as a connection interface between the CE SWITCH and the tested equipment. It is intended for connection of various 1-phase appliances to A 1600 CE SWITCH. Equipment with supply cord, equipment intended for fixed installation, electronic subassemblies can be tested. Connections for connection to isolated conductive parts and earthed parts are added. The connection box is coded in order to prevent from applying a too high test voltage to its outputs.
Do you own this product?
Standards applied
Electrical switchboards safety
- ESB Competences: Electrical Switchboards Safety Testing
- IEC/EN 61439-1 Low-voltage switchgear and controlgear assemblies - Part 1: General rules
Machine safety
- MST Competences: Machines Electrical Safety Testing
- IEC/EN 50191 Erection and operation of electrical test equipment
- IEC/EN 60950 Information technology equipment – Safety
Portable appliances safety
- PAT Competences: Portable Appliances Safety Testing
- EN 50699 Recurrent Test of Electrical Equipment
- EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
- IEC/EN 60335-1 Household and similar electrical appliances - Safety
- IEC/EN 60598-1 Luminaires - Part 1: General requirements and tests
- VDE 0701 Inspection after repair, modification of electrical appliances - periodic
- VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
Instrument safety towards user
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
Optional accessories
A 1511 5M Tip Commander 5 m
Tip commander serves as a remote control for execution of passive tests, when used in combination with A 1460. Or for execution of 4-wire continuity test when used directly from MI 3325. The commander has a built in LED torch lamp including PASS/FAIL status LED's and start key for execution of the tests. When used directly from MI 3325 the connection cable A 1583 must be used.
A 1511 2M5 Tip Commander 2,5 m
Tip commander serves as a remote control for execution of passive tests, when used in combination with A 1460. Or for execution of 4-wire continuity test when used directly from MI 3325. The commander has a built in LED torch lamp including PASS/FAIL status LED's and start key for execution of the tests. When used directly from MI 3325 the connection cable A 1583 must be used.
A 1511 10M Tip Commander 10 m
Tip commander serves as a remote control for execution of passive tests, when used in combination with A 1460. Or for execution of 4-wire continuity test when used directly from MI 3325. The commander has a built in LED torch lamp including PASS/FAIL status LED's and start key for execution of the tests. When used directly from MI 3325 the connection cable A 1583 must be used.
