A 1600 CE Switch 5kV
Accessories
A 1600 Standard set
- A 1600 CE Switch 5kV
- A 1728 Mains cable C13 / Schuko, 3 x 0.75 mm2, 2 m
- A 1695 Grounding cable, 2 m
- A 1076 Continuity test lead, 2.5 m, 2pcs
- A 1645 Multi-functional test cable, TC1, 1.3 m
- A 1601 HV test lead with test probe, red, 1.5 m
- A 1602 HV test lead with test probe, blue, 1.5 m
The A 1600 CE Switch 5kV combines all features of the CE MultiTesterXS and extends them to four HV test channels and two 4-wire continuity test channels. The CE Switch could be used in conjunction with several separate connection boxes, containing various kinds of contacting to tested items. The operation of CE Switch is completely controlled by the master instrument, no user intervention during the tests is needed. I/O connections and LEDs for controlling the Autosequence® flow are integrated. Testing of electrical equipment with multiple connection points is supported. The switch recognizes the connected adapter and prevents from applying too high voltages/current to it (protection by HW and SW).
Do you own this product?
Standards applied
Electrical switchboards safety
- ESB Competences: Electrical Switchboards Safety Testing
- IEC/EN 61439-1 Low-voltage switchgear and controlgear assemblies - Part 1: General rules
Machine safety
- MST Competences: Machines Electrical Safety Testing
- IEC/EN 50191 Erection and operation of electrical test equipment
- IEC/EN 60950 Information technology equipment – Safety
Portable appliances safety
- PAT Competences: Portable Appliances Safety Testing
- IEC/EN 60335-1 Household and similar electrical appliances - Safety
- IEC/EN 60598-1 Luminaires - Part 1: General requirements and tests
- VDE 0701 Inspection after repair, modification of electrical appliances - periodic
- VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
Instrument safety towards user
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
Properties
Key features
- Multipurpose switching matrix can be used to apply high voltage, in combination with all other supported tests (Continuity, insulation, leakages, residual voltage);
- Testing with high voltages up to 5 kV ac or 6 kV dc, are supported;
- Improves operators safety from shock;
- The active CE Switch 5kV is an active multichannel switch/adapter intended to run AutoSequences®.
Applications
End-of-line safety testing in production
- Test station with automatic protection using RFID sensor safety module S 2109
- Test station with automatic protection using light barrier sensor S 2110
- Test station without automatic protection using two hands control device S 2111
- Test station where test current for withstanding HV test does not exceed 3mA (S 2115)
Optional accessories
A 1495 Remote control pedal
Remote control pedal is used for safe remote start of high voltage insulation test and additionally allows free hand operation of the worker.
A 1496 Warning lamp / 2-LED signal tower HV
Warning lamps visually signalize ongoing HV insulation test and warn the user about dangerous voltage conditions for use with A 1460. If A 1496 is used in combination with MI 3325 or MI 3394, an external power supply adaptor A 1499 shall be used.
A 1497 Warning lamp / 4 LED’s signal tower with buzzer
Colour - LED signal tower with build-in buzzer visually and acoustically signalizes ongoing tests and test conditions for use with A 1460. If A 1497 is used in combination with MI 3325 or MI 3394, an external power supply adaptor A 1499 shall be used.
A 1674 19” Rack housing
The A 1674 compact desktop enclosure is designed for integration of the CE Multitester instrument, or/and A 1600 SWITCH 5kV. Its design enables fast and simple integration of measuring components.
A 1674 Standard set
- A 1674 19” Rack housing
- A 1695 Grounding cable, 2 m
A 1496 MAG Warning lamp / 2-LED signal tower HV ready for magnetic mounting
Warning lamps visually signalize ongoing HV insulation test and warn the user about dangerous voltage conditions.

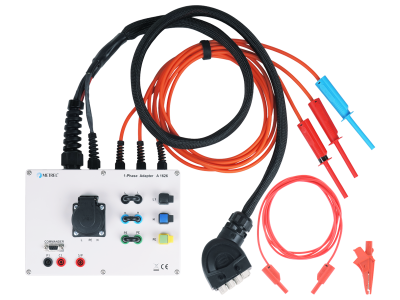

A 1626 Connection box 1-phase
Diversity of electronic products, which need to be tested, present a many challenges for the manufacturers. Different sizes, shapes and configurations of electronic devices make it challenging for electrical safety examination. Due to these facts Metrel has developed different types of connection boxes, which can be easily adopted to customer’s needs. The A 1626 connection box is a passive devices that acts as a connection interface between the CE SWITCH and the tested equipment. It is intended for connection of various 1-phase appliances to A 1600 CE SWITCH. Equipment with supply cord, equipment intended for fixed installation, electronic subassemblies can be tested. Connections for connection to isolated conductive parts and earthed parts are added. The connection box is coded in order to prevent from applying a too high test voltage to its outputs.
A 1626 Standard set
- A 1626 Connection box, 1-phase
- A 1710 Test lead, red, 1.5 m
- A 1064 Crocodile clip, red

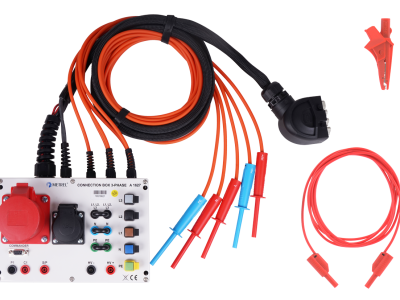

A 1627 Connection box 3-phase
Diversity of electronic products, which need to be tested, present a many challenges for the manufacturers. Different sizes, shapes and configurations of electronic devices make it challenging for electrical safety examination. Due to these facts Metrel has developed different types of connection boxes, which can be easily adopted to customer’s needs. The A 1627 connection box is a passive devices that acts as a connection interface between the CE SWITCH and the tested equipment. It is intended for connection of various 1- and 3-phase appliances to A 1600 CE SWITCH. Equipment with supply cord, equipment intended for fixed installation, electronic subassemblies can be tested. Connections for connection to isolated conductive parts and earthed parts are added. The connection box is coded in order to prevent from applying a too high test voltage to its outputs.

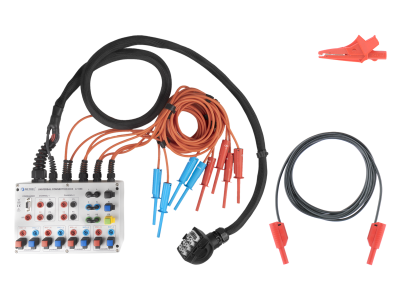

A 1688 Universal connection box
Diversity of electronic products, which need to be tested, present many challenges for the manufacturers. Different sizes, shapes and configurations of electronic devices make it challenging for electrical safety examination. Due to these facts Metrel has developed different types of connection boxes, which can be easily adopted to customer’s needs. The A 1688 connection box is a passive device that acts as a connection interface between the CE SWITCH 5 kV and the tested equipment. It is intended for connection of various 1- and 3-phase appliances to A 1600 CE SWITCH 5 kV. Equipment with intended for fixed installation and electronic subassemblies can be tested. Connections for connection to isolated conductive parts and earthed parts are added. The connection box is coded in order to prevent from applying a too high test voltage to its outputs.
