A 1460 CE Adapter
Accessories

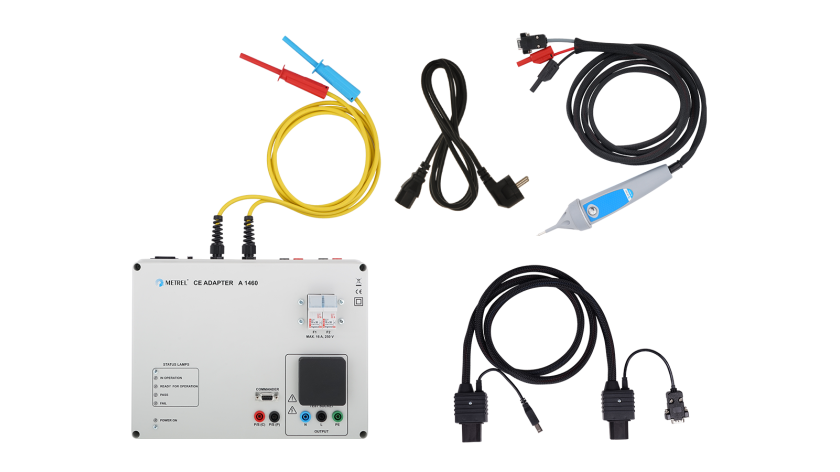

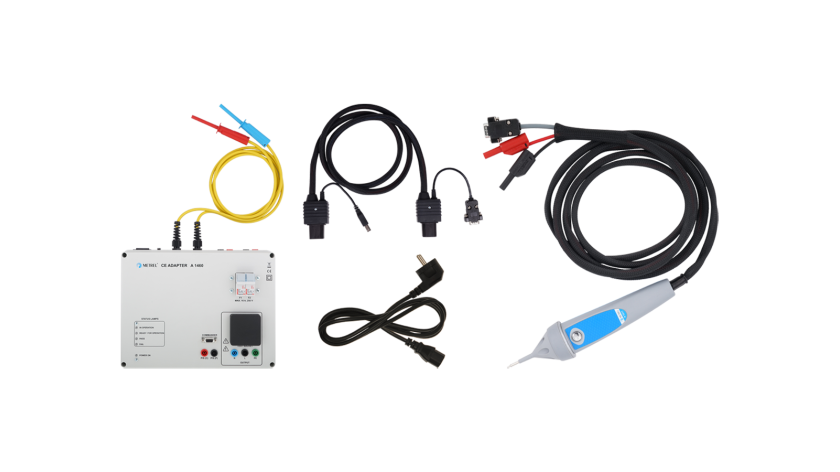

A 1460 Standard set
- A 1460 CE Adapter
- A 1728 Mains cable C13 / Schuko, 3 x 0.75 mm2, 2 m
- A 1511 2M5 Tip commander, 2.5 m
- A 1645 Multi-functional test cable, TC1, 1.3 m
The A 1460 CE Adapter is an active switch or adapter intended to run AutoSequences® on electrical equipment in combination with the master instruments. The operation of CE test adapter is completely controlled by the master instrument, no user intervention during the tests is needed. I/O connections and LEDs for controlling the AutoSequence® flow are integrated. The adapter is protected against applying too high voltage to its outputs (HW and SW protection).
Do you own this product?
Properties
Measuring functions
- Multipurpose switching matrix can be used to apply high voltage, in combination with all other supported tests (Continuity, insulation, leakages, residual voltage);
- Testing with high voltages up to 1.5 kV ac or dc, are supported;
- Improves operators safety from shock;
- The active CE ADAPTER is an active switch/adapter intended to run AutoSequences®.
Optional accessories
A 1495 Remote control pedal
Remote control pedal is used for safe remote start of high voltage insulation test and additionally allows free hand operation of the worker.

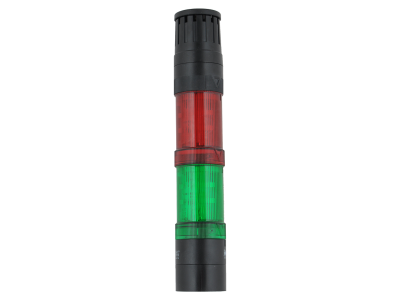

A 1496 Warning lamp / 2-LED signal tower HV
Warning lamps visually signalize ongoing HV insulation test and warn the user about dangerous voltage conditions for use with A 1460. If A 1496 is used in combination with MI 3325 or MI 3394, an external power supply adaptor A 1499 shall be used.

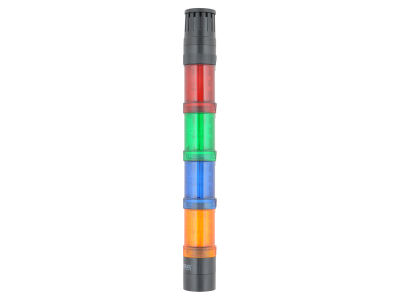

A 1497 Warning lamp / 4 LED’s signal tower with buzzer
Colour - LED signal tower with build-in buzzer visually and acoustically signalizes ongoing tests and test conditions for use with A 1460. If A 1497 is used in combination with MI 3325 or MI 3394, an external power supply adaptor A 1499 shall be used.

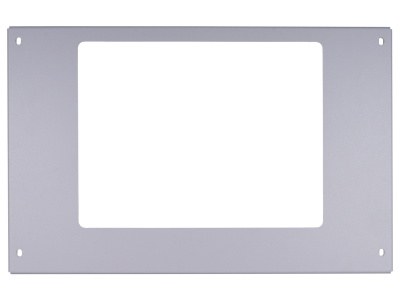

A 1586 Rack mount adapter for A 1460 CE Adapter
A 1586 is a rack mount adapter for 19” rack, which is designed to hold the A 1460 CE Adapter. This product kit includes the parts needed for complete and easy installation of the adaptor kit in RITAL square hole racks, and some third-party racks.

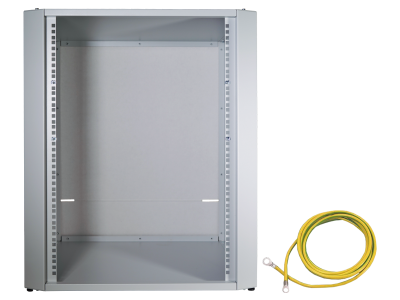

A 1674 19” Rack housing
The A 1674 compact desktop enclosure is designed for integration of the CE Multitester instrument, or/and A 1600 SWITCH 5kV. Its design enables fast and simple integration of measuring components.
A 1674 Standard set
- A 1674 19” Rack housing
- A 1695 Grounding cable, 2 m

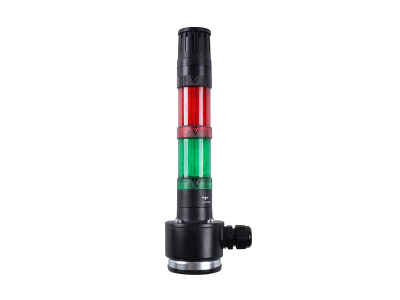

A 1496 MAG Warning lamp / 2-LED signal tower HV ready for magnetic mounting
Warning lamps visually signalize ongoing HV insulation test and warn the user about dangerous voltage conditions.
