eMobility
Electrical Installations Safety
There is a growing number of electric vehicles on today’s roads accompanied by a rapid expansion of charging infrastructure – all of which must be regularly tested to meet safety standards. We are of course talking about electrical safety as virtually all electric vehicles use batteries with voltages that far exceed the safe voltage threshold. Any faults on the battery or the connected installation may therefore constitute a hazard for people and infrastructure.
Speaking of infrastructure, charging points, stations and other types of equipment used for charging electric vehicles’ batteries also require regular and rigorous testing. They are, from a practical electrical safety testing standpoint, part installations and part electrical equipment, and therefore require a more comprehensive approach.

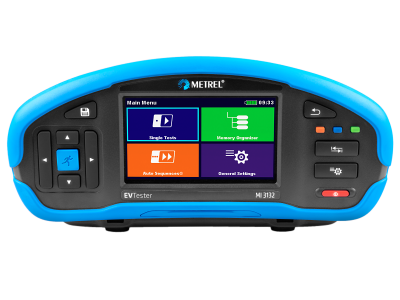

Features*
- Insulation resistance measuring according to UN ECE R100 measuring using internal DC source.
- Performing accurate four wire measurements with Kelvin clamps and up to 2 A measuring current.
- Settable duration and current direction (unidirectional or bidirectional) in the Micro Ohm measurement.
- Insulation range: wide range of insulation test voltages from 50 V to 1500 V, resistance measuring range up to 3 GΩ.
- Overvoltage category 1000 V CAT III.
- 3’’ colour LCD display with touch screen.
- Programmable AUTO SEQUENCEs.
- High degree of protection for outdoor use and rough environment.
- DC resistance measurements.
- Support for single or automated measurements.
- Built-in charger and rechargeable Li-Ion batteries as standard accessory.
- BT communication with PC, via built-in BT module.
- PC SW Metrel ES Manager for measurement pre and post processing: preparation of the test structure, result download, tree-view, table view and graphical view, storing and printing.
- Functional testing of EVSE via simulation of electrical vehicle’s CP and PP circuits.
- Diagnostic testing of EVSE via simulation of errors on CP circuit (output side).
- Electrical safety testing of EVSE.
- Functional testing of Mode 2 EV cables via simulation of electrical vehicle’s CP and PP circuits.
- Diagnostic testing of Mode 2 EV cables via simulation of errors on CP circuit (output side) and mains (input side).
- Electrical safety testing of Mode 2 EV cables with installed IC-CPD protection.
- Electrical safety testing of Mode 3 EV cables.
- Accessible inputs/outputs for connection of safety testers.
- Bluetooth communication with Metrel safety testers and Android devices with eMobility app.
- Monitoring during a.c. EV charging with up to 32 A EVSE.
- CP signal communication monitoring during charging.
- PP resistance.
- Possible to connect instruments for current and voltage verification (i.e., MI 2883 Energy Master, MI 2884 Energy Master XA).
- Possible to simulate external load (up to 13 A) via banana plugs and verify EVSE counters.
- Banana socket outputs for connection to a 3-phase installation tester.
- Voltage indicators on EVSE output.
- Proximity Pilot resistance selector for simulation of EV cable presence and current rating detection.
- Control Pilot resistance selector for simulation of electric vehicle status.
- Socket output for connection to a 1-phase installation tester (Phase 1, Neutral, PE).
- Type 2 Male Plug connector for connection to EVSE.
- 6 mA EV RCD support.
- Functional tests support.
- EVSE AUTO SEQUENCE® support.
- MESM report creation.
- Load testing up to 13 A on socket - 1 phase or on banana sockets - 3 phase.
- Fault simulation of Diode short, PE-CP short and PE open.
- Output BNC connector for CP signal monitoring.
*Note: Presented features, functionalities and other information on this page represent a compound list of all products’ capabilities and not capabilities of each separate product. Consult datasheets and user manuals of each specific product for detailed information about supported features and functionalities.
Applications*
- Electrical vehicles first safety inspection according to UN ECE R100.
- Industrial testing.
- Voltage measurements.
- Frequency measurements.
- Battery systems.
- EVSE construction and testing.
- Vehicles with an on-board generator.
- EVSE domestic installation testing.
- EVSE periodic inspection.
- Renewable power and car charging.
*Note: Presented features, functionalities and other information on this page represent a compound list of all products’ capabilities and not capabilities of each separate product. Consult datasheets and user manuals of each specific product for detailed information about supported features and functionalities.
